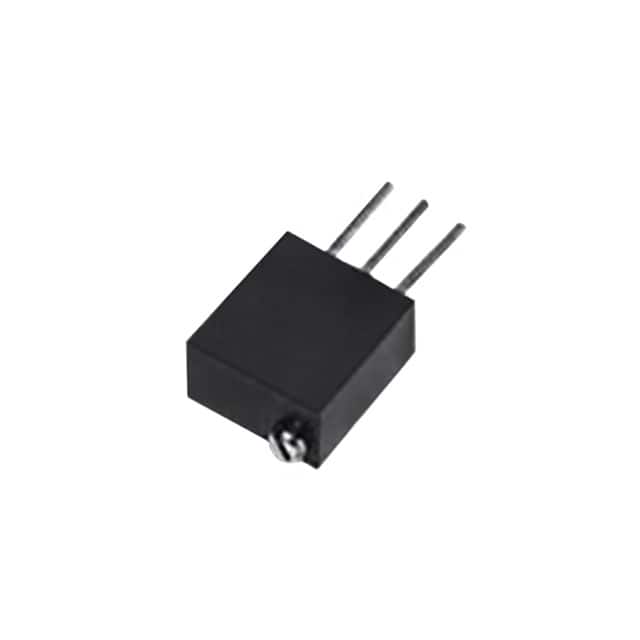

TRIMMER 500 OHM 0.5W PC PIN TOP
All alternatives
View full reportTechnical parameters
Key specs
Resistance500 Ω
Tolerance10 %
Power500 mWMax
Turns19
| Power | |
|---|---|
| Power (Watts) | 0.5W, 1/2W |
| Environment and package | |
| Mounting Type | Through Hole |
| Package | Tube |
| Size / Dimension | Rectangular - 0.382" x 0.217" Face (9.70mm x 5.50mm) |
| Temperature Coefficient | ±50ppm/°C |
| Other | |
| Adjustment Type | Top Adjustment |
| Mfr | Nidec Copal Electronics |
| Number of Turns | 19 |
| Product Status | Obsolete |
| Resistance | 500 Ohms |
| Resistive Material | Wirewound |
| Series | 1309 |
| Termination Style | PC Pins |
| Tolerance | ±10% |
