MolexUnited States

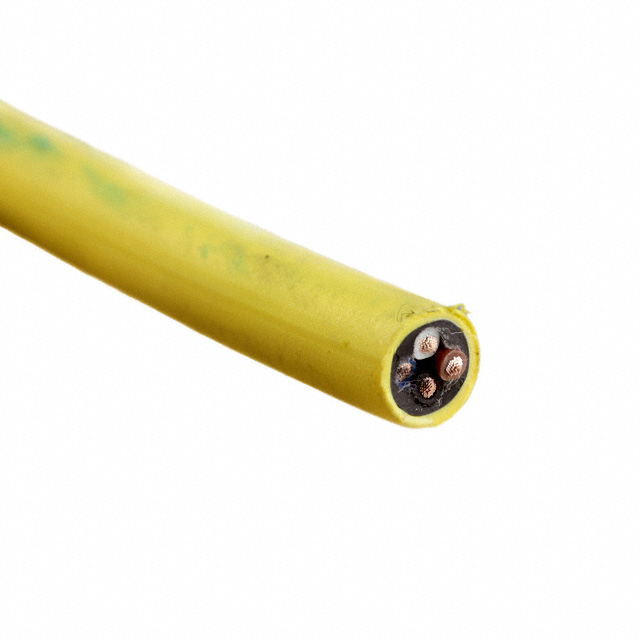

CABLE 4COND 18AWG YELLOW 10'
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Voltage | 300 V |
| Environment and package | |
| Operating Temperature | - |
| Package | Bulk |
| Other | |
| Base Product Number | 130210 |
| Cable Type | Multi-Conductor |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Tinned |
| Conductor Strand | 41/34 |
| Features | - |
| Jacket Color | Yellow |
| Jacket (Insulation) Diameter | 0.275" (6.99mm) |
| Jacket (Insulation) Material | Polyurethane (PU) |
| Jacket (Insulation) Thickness | 0.0200" (0.508mm) |
| Length | 10.00' (3.05m) |
| Mfr | Molex |
| Number of Conductors | 4 |
| Product Status | Obsolete |
| Ratings | UL Style 20549 |
| Series | 130210 |
| Shield Coverage | - |
| Shield Material | - |
| Shield Type | - |
| Usage | - |
| Wire Gauge | 18 AWG |
