TE ConnectivitySwitzerland

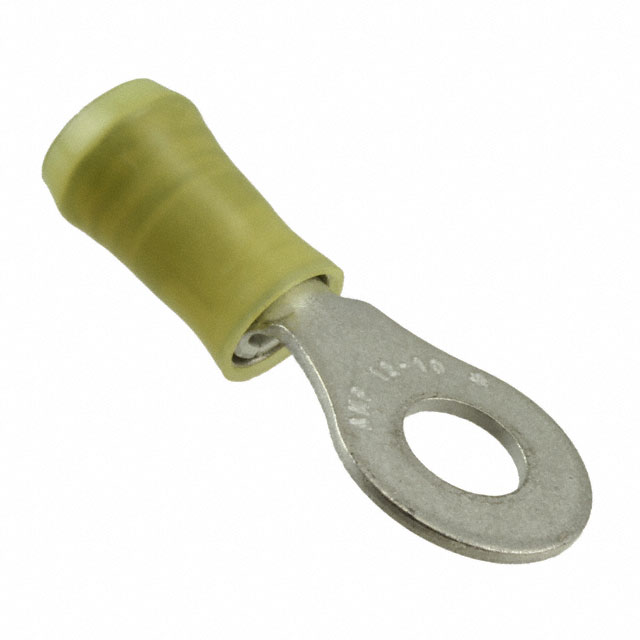

CONN RING CIRC 10-12AWG M6 CRIMP
All alternatives
View full reportTechnical parameters
| Environment and package | |
|---|---|
| Mounting Type | Free Hanging (In-Line) |
| Package | Bulk |
| Stud/Tab Size | M6 Stud |
| Other | |
| Color | Yellow |
| Contact Finish | Tin |
| Contact Material | Copper |
| Features | Serrated Termination |
| Insulation | Insulated |
| Insulation Diameter | 0.150" ~ 0.250" (3.81mm ~ 6.35mm) |
| Length - Overall | 1.331" (33.81mm) |
| Material - Insulation | Polyamide (PA), Nylon |
| Mfr | TE Connectivity AMP Connectors |
| Product Status | Active |
| Series | PIDG |
| Terminal Type | Circular |
| Termination | Crimp |
| Thickness | 0.039" (0.99mm) |
| Width - Outer Edges | 0.531" (13.49mm) |
| Wire Gauge | 10-12 AWG |
