TE ConnectivitySwitzerland

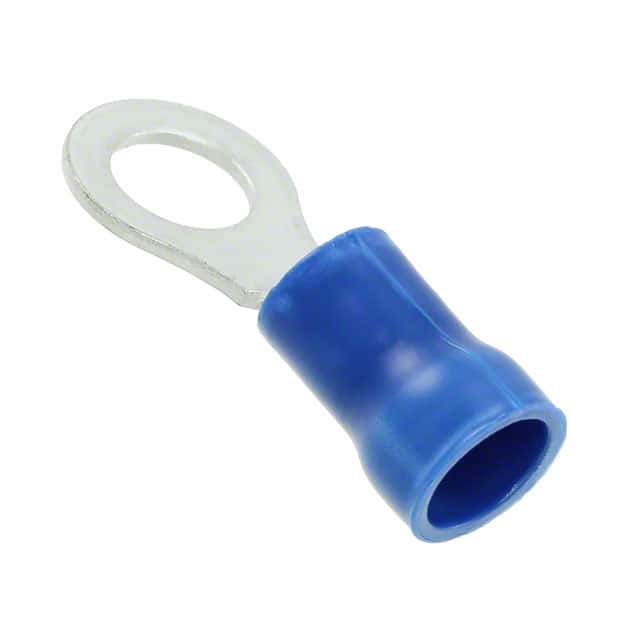

CONN RING CIRC 14-16AWG CRIMP
All alternatives
View full reportTechnical parameters
| Environment and package | |
|---|---|
| Mounting Type | Free Hanging (In-Line) |
| Package | Bulk |
| Stud/Tab Size | - |
| Other | |
| Base Product Number | 1301 |
| Color | Blue |
| Contact Finish | Tin |
| Contact Material | Copper |
| Features | Serrated Termination |
| Insulation | Insulated |
| Insulation Diameter | 0.118" ~ 0.193" (3.00mm ~ 4.90mm) |
| Length - Overall | 0.878" (22.30mm) |
| Material - Insulation | Poly-Vinyl Chloride (PVC) |
| Mfr | TE Connectivity AMP Connectors |
| Product Status | Active |
| Series | Plasti-Grip |
| Terminal Type | Circular |
| Termination | Crimp |
| Thickness | 0.032" (0.81mm) |
| Width - Outer Edges | 0.343" (8.71mm) |
| Wire Gauge | 14-16 AWG |
