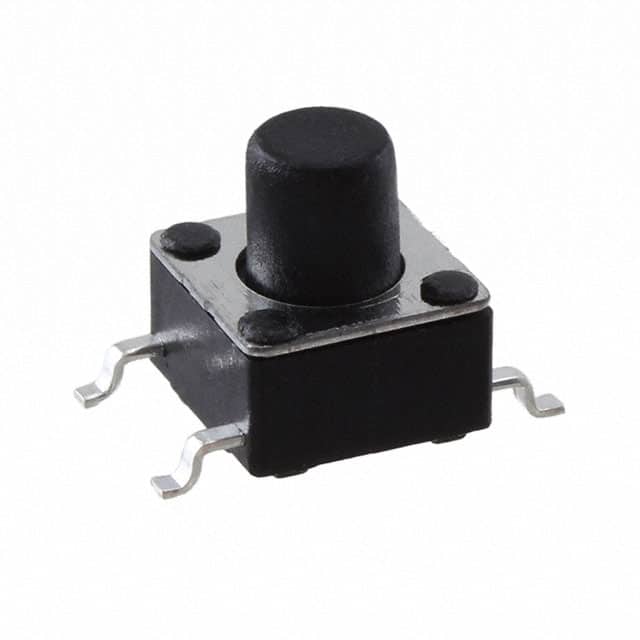

1301.9316
SCHURTER Inc.Switzerland

1301.9316

ActiveTactile Switches

SWITCH TACTILE SPST-NO 0.05A 12V

See alternativesAsk AI FAE

All alternatives

View full report

Technical parameters

Key specs

CircuitSPST-NO
Switch functionOff-Mom
Current rating50 mAMax · 12VDC
Power
Contact Rating @ Voltage0.05A @ 12VDC
Illumination Voltage (Nominal)-
Environment and package
Actuator Height off PCB, Vertical7.00mm
Mounting TypeSurface Mount
Operating Temperature-20°C~70°C
PackageBulk
Other
Actuator Length, Right Angle-
Actuator Material-
Actuator OrientationTop Actuated
Actuator TypeStandard
CircuitSPST-NO
FeaturesTactile Feedback
IlluminationNon-Illuminated
Illumination Type, Color-
Ingress ProtectionIP40
Mechanical Life100,000 Cycles
MfrSCHURTER Inc.
Operating Force160gf
Outline6.00mm x 6.00mm
Product StatusActive
SeriesLSH
Switch FunctionOff-Mom
Switch Travel0.25mm
Termination StyleGull Wing
