SMC Diode SolutionsUnited States

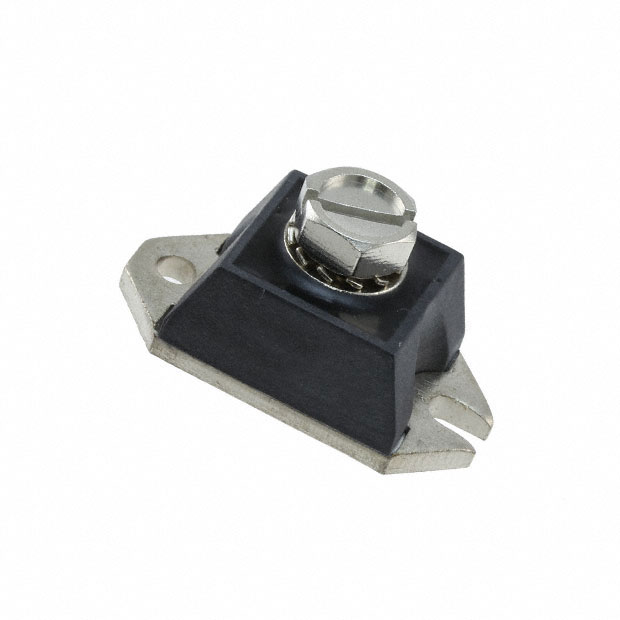

DIODE SCHOTTKY 150V 120A PRM1-1
All alternatives
View full reportTechnical parameters
Key specs
Reverse voltage150 V
Average rectified current120 A
Forward voltage1.07 VMax · 120 A
TypeSchottkyFast Recovery =< 500ns，> 200mA (Io)
| Power | |
|---|---|
| Current - Average Rectified (Io) | 120A |
| Current - Reverse Leakage @ Vr | 3 mA @ 150 V |
| Voltage - DC Reverse (Vr) (Max) | 150 V |
| Voltage - Forward (Vf) (Max) @ If | 1.07 V @ 120 A |
| Environment and package | |
| Mounting Type | Chassis Mount |
| Operating Temperature - Junction | -55°C~175°C |
| Package | Bulk |
| Package / Case | HALF-PAK |
| Supplier Device Package | PRM1-1 (Half Pak Module) |
| Other | |
| Base Product Number | 129NQ |
| Capacitance @ Vr, F | 3000pF @ 5V, 1MHz |
| Diode Type | Schottky |
| Mfr | SMC Diode Solutions |
| Product Status | Active |
| Series | - |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
