Phoenix ContactGermany

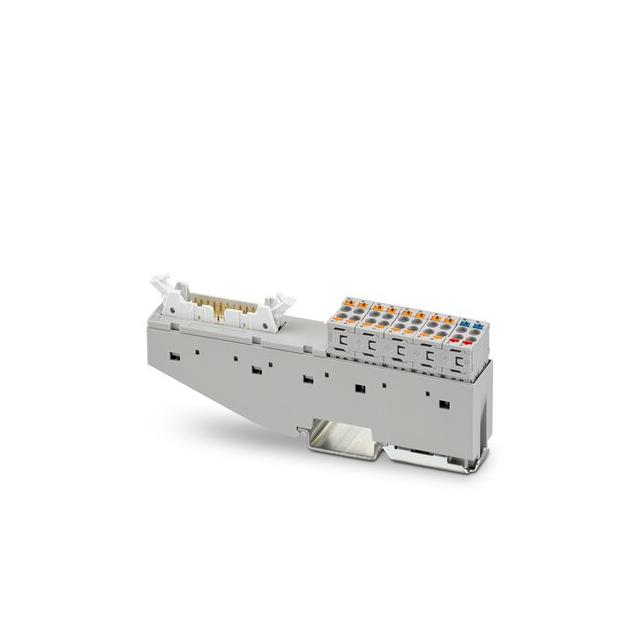

VARIOFACE FRONT CONNECT, IDC/FLK
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current Rating (Per Contact) | 1 A |
| Voltage - Rated | 30VAC, 60VDC |
| Environment and package | |
| Operating Temperature | -40°C ~ 70°C |
| Package | Bulk |
| Other | |
| Control Side Cable Retainer | Latches |
| Control Side Connection | Rectangular, Male |
| Features | - |
| Length | 5.000" (127.00mm) |
| Mfr | Phoenix Contact |
| Positions / Poles | 20 |
| Process Side Connection | Terminal Blocks - Spring Connection |
| Product Status | Active |
| Series | Varioface |
| Width | 0.744" (18.90mm) |
| Wire Gauge | 16-24 AWG |
