WeidmüllerGermany

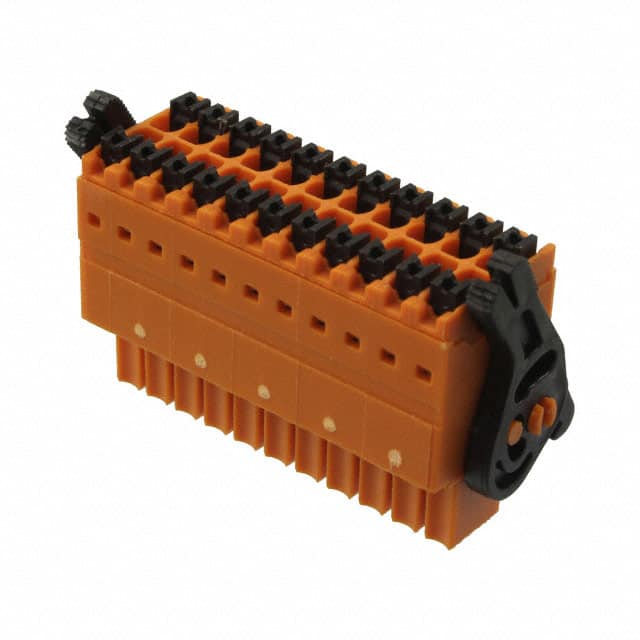

TERM BLOCK PLUG 22POS STR 3.5MM
All alternatives
View full reportTechnical parameters
Key specs
Positions22
Pitch3.5 mm
| Power | |
|---|---|
| Current - IEC | 13.4A |
| Current - UL | 9.5 A |
| Voltage - IEC | 320 V |
| Voltage - UL | 300 V |
| Environment and package | |
| Insulation Height | 0.598" (15.19mm) |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature | -50°C~120°C |
| Package | Bulk |
| Screw Size | - |
| Other | |
| Color | Orange |
| Contact Material | Copper Alloy |
| Contact Mating Finish | Tin |
| Contact Tail Length | - |
| Features | Ejector Latches |
| Header Orientation | - |
| Housing Material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Ingress Protection | IP20 |
| Material Flammability Rating | UL94 V-0 |
| Mfr | Weidmüller |
| Number of Levels | 2 |
| Number of Positions | 22 |
| Pitch | 0.138" (3.50mm) |
| Plug Wire Entry | 180° |
| Positions Per Level | 11 |
| Product Status | Active |
| Series | Omnimate B2CF |
| Termination Style | Screwless - Leg Spring, Push-In Spring |
| Torque - Screw | - |
| Type | Plug, Female Sockets |
| Wire Gauge or Range - AWG | 16-26 AWG |
| Wire Gauge or Range - mm² | 0.14-1.5mm² |
| Wire Strip Length | 10mm |
