WeidmüllerGermany

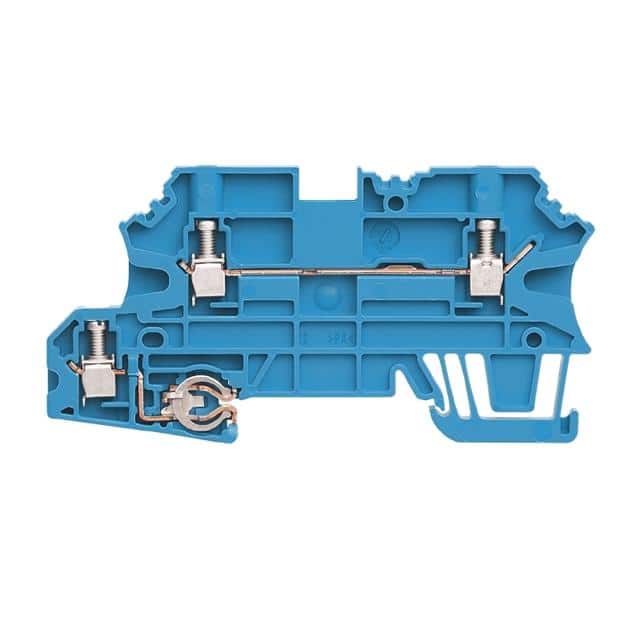

CONN TERM BLK FEED THRU 12-26AWG
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - IEC | 24 A |
| Current - UL | 20 A |
| Voltage - IEC | 800V |
| Voltage - UL | 600V |
| Environment and package | |
| Package | Bulk |
| Other | |
| Color | Blue |
| Disconnect Type | - |
| Features | - |
| Fuse Type | - |
| Material Flammability Rating | UL94 V-0 |
| Material - Insulation | Thermoplastic, Wemid |
| Mfr | Weidmüller |
| Number of Levels | 2 |
| Number of Positions | 3 |
| Product Status | Active |
| Series | W |
| Stripping Length | 10mm |
| Terminal - Width | 5.1mm |
| Termination Style | Screw |
| Type | Feed Through, Isolated |
| Wire Gauge or Range - AWG | 12-26 AWG |
| Wire Gauge or Range - mm² | 0.5-4mm² |
