Switchcraft Inc.United States

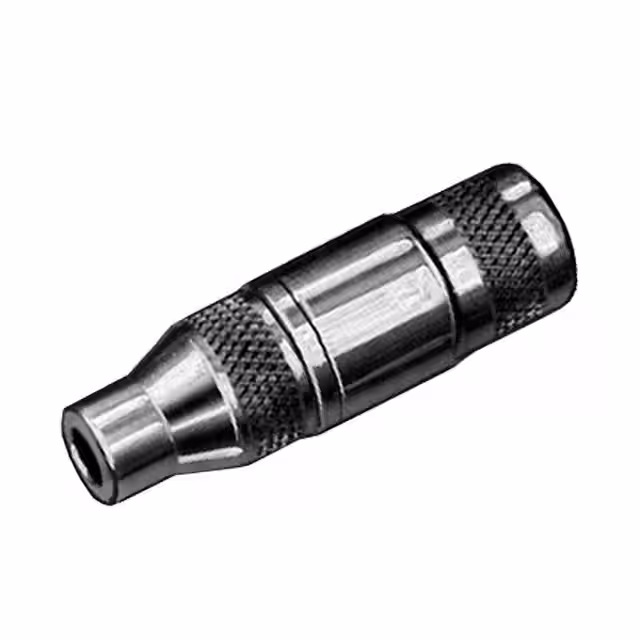

CONN JACK MONO 3.55MM
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Voltage - Rated | - |
| Environment and package | |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature | - |
| Package | Bulk |
| Panel Hole Size | - |
| Thread Size | - |
| Other | |
| Actual Diameter | 0.144" (3.66mm) |
| Base Product Number | - |
| Body Color | Silver |
| Body Material | Copper Alloy |
| Cable Opening | 0.203" (5.16mm) |
| Connector Type | Phone Jack |
| Contact Material | Steel |
| Contact Material - Plating | Tin |
| Features | - |
| Gender | Female |
| Housing Material | Copper Alloy |
| Includes | - |
| Industry Recognized Mating Diameter | 3.55mm (0.14", Tini Plug) |
| Insulation Color | - |
| Internal Switch(s) | Does Not Contain Switch |
| Mating Length/Depth | - |
| Mfr | Switchcraft Inc. |
| Number of Positions/Contacts | 2 Conductors, 2 Contacts |
| Product Status | Active |
| Series | Tini-Extension Jax® |
| Shielding | Shielded |
| Signal Lines | Mono |
| Termination | Solder Eyelet(s) |
