Bourns Inc.United States

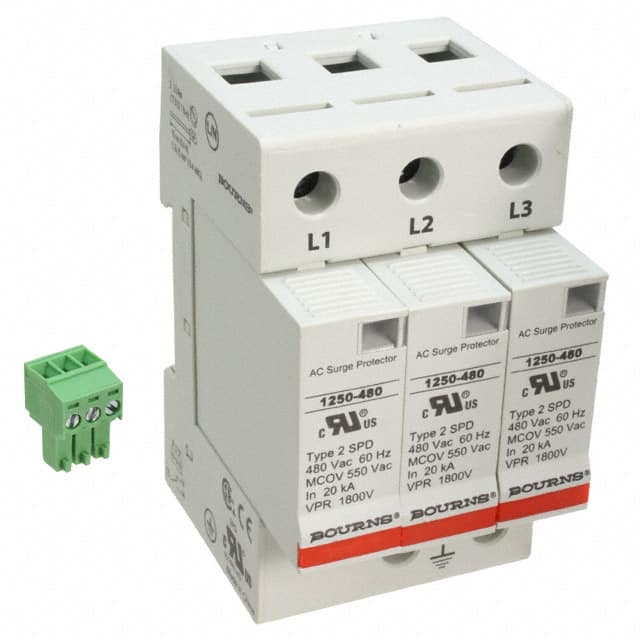

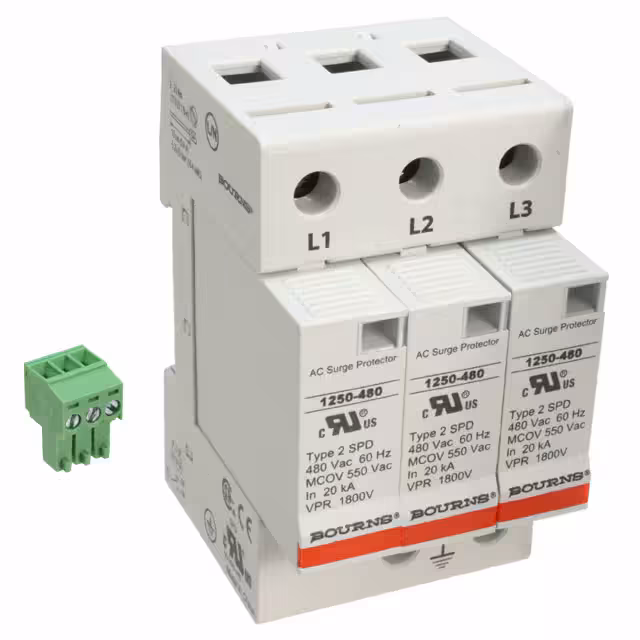

SPD AC 3W+G 600VAC
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Discharge (Max) (8/20µS) | 50 kA |
| Current - Discharge (Nom) (8/20µS) | 20 kA |
| Current - Short Circuit Rating (SCRR) | 100 kA |
| Voltage - Continuous Operating (Max) (MCOV) | 550VAC |
| Voltage - Protection Level (VP) (2416) | 2.5 kV |
| Voltage - Protection Rating (VPR) | 1.8 kV |
| Environment and package | |
| Mounting Type | DIN Rail |
| Operating Temperature | -50°C~85°C |
| Package | Bulk |
| Other | |
| Approval Agency | CE, CSA, UR |
| Base Product Number | 1250 |
| Features | Remote Signaling Contacts, Thermally Protected |
| Form | Base + Module |
| Mfr | Bourns Inc. |
| Number of Poles | 3 |
| Product Status | Active |
| Series | 1250 |
| Type | Type 2, Type 4 |
