AmphenolUnited States

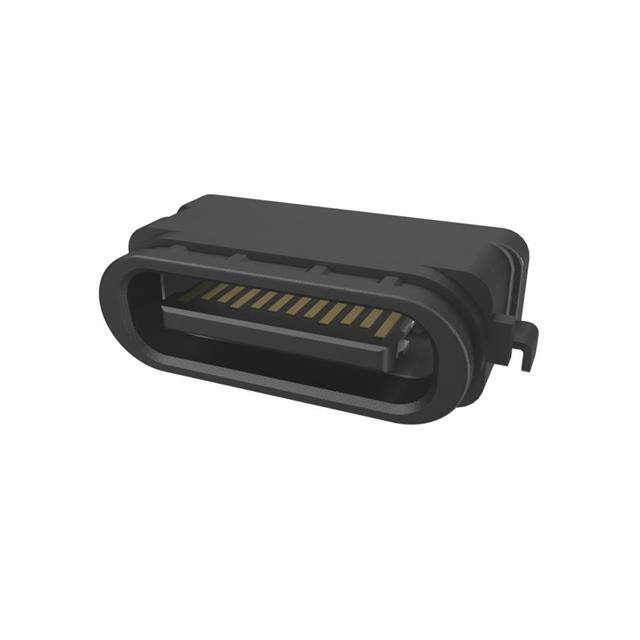

USB3.2 GEN1, TYPE C, MID MOUNT,
All alternatives
View full reportTechnical parameters
Key specs
Positions24
GenderFemale
| Power | |
|---|---|
| Current Rating (Amps) | - |
| Voltage - Rated | 30VAC |
| Environment and package | |
| Mounting Feature | Horizontal |
| Mounting Type | Surface Mount, Right Angle |
| Operating Temperature | -40°C~85°C |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Other | |
| Connector Type | USB-C (USB TYPE-C) |
| Contact Finish | Gold |
| Features | - |
| Gender | Receptacle |
| Ingress Protection | - |
| Insulation Color | Black |
| Material Flammability Rating | - |
| Mating Cycles | 10000 |
| Mfr | Amphenol ICC (Commercial Products) |
| Number of Contacts | 24 |
| Number of Ports | 1 |
| Product Status | Active |
| Series | - |
| Shell/Shielding Material | Steel, Stainless |
| Shielding | Shielded |
| Specifications | - |
| Termination | Solder |
Documents
No documents are linked to this part yet.
