Alpha WireUnited States
1232

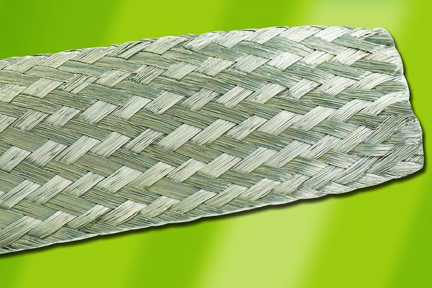

ActiveAlpha braid is an exceptional low resistance way to create a point-to-point ground strap. In retrofit applications braid is an ideal way to install additional shielding to your cable.
All alternatives
View full reportTechnical parameters
| Environment and package | |
|---|---|
| a) Nominal Dimensions | .375 x .030 Inches |
| Other | |
| 3) California Proposition 65 | Exempt from warning labels based on the Consent Judgment. Please see Alpha's CA Prop 65 Statement for more information. |
| a) 100 ft. | 3.5 x 3 x 1-1/8, Continuous |
| a) Material | Tinned Copper, per ASTM B-33 and CID-A-A-59551, latest revision |
| b) 500 ft. | 9 x 4.5 x 3.5, 3 Pieces Max., 25 ft. Min. Length |
| b) AWG of Ends | 36 |
| b) Stranding | Solid |
| c) 1000 ft. | 12 x 6 x 3.5, 4 Pieces Max., 25 ft. Min Length |
| c) Number of Carriers | 48 |
| d) Nominal Percent Coverage | N/A |
| e) Total Number of Ends | 288 |
| f) Approx. Equiv. AWG | 12 |
| g) Approx. Ampacity | 46 Amps |
| h) Federal Spec Number | N/A |
| i) DC Resistance, Nominal | 2.04 Ohms/1000 ft. |
