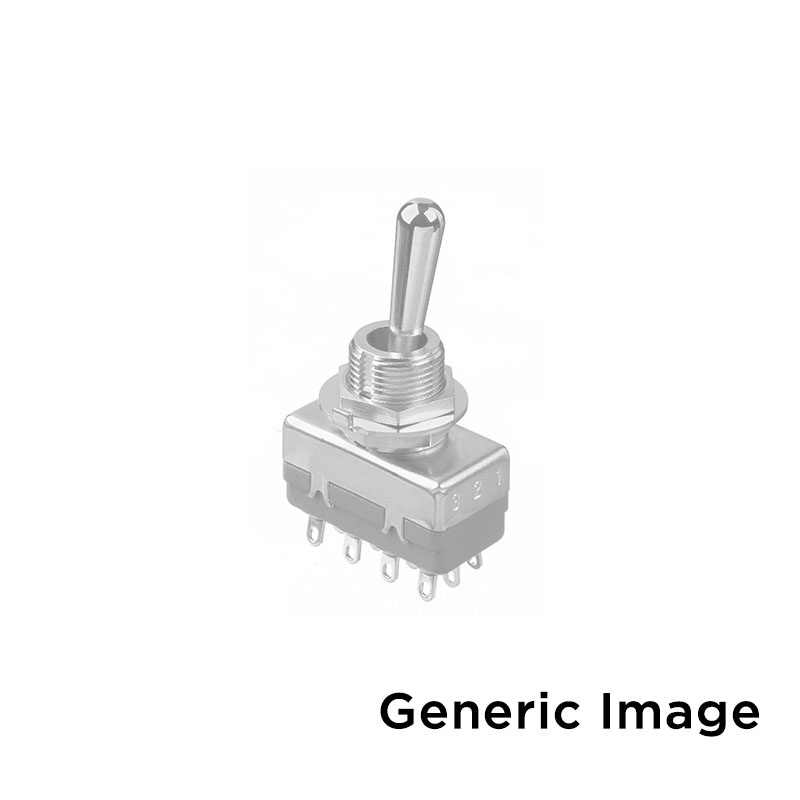

Versatile 12166AD2 Panel Switch with four poles for multiple circuits. Features ON ON function and standard lever for easy handling. Ideal for various electrical applications.
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Max. current/voltage rating with resistive load | - silver contacts (A-AD2-X780) : 4A 30VDC- gold contacts (D) : 100mA 30VDC |
| Environment and package | |
| Operating temperature | -40°C to +85°C |
| Other | |
| Contact bounce | 2 ms max. |
| Dielectric strength | 1.000 Vrms 50 Hz min. between terminals2.000 Vrms 50 Hz min. between poles and between terminals and frame |
| Electrical Functions | ON ON |
| Finish | Bright Chrome Finish On Actuator |
| Fluorescent Tip | None |
| Initial contact resistance | 10 mΩ max. |
| Insulation resistance | 1.000 MΩ min. at 500VDC |
| Levers | Standard |
| Minimum load | AD2-X780-D contacts : 10mA 50mV, 10μA 5V min. |
| Number Of Poles | Four Poles |
| Sealing | Epoxy Sealed Terminals |
| Special Options | No Special Requirement |
| Standard panel thickness | 4,5 mm (.177) max. |
| Terminals And Bushing | Solder Lug Terminals |
| Torque | 1,50 Nm (1.10 Ft.lb) max. applied between the 2 nuts |
