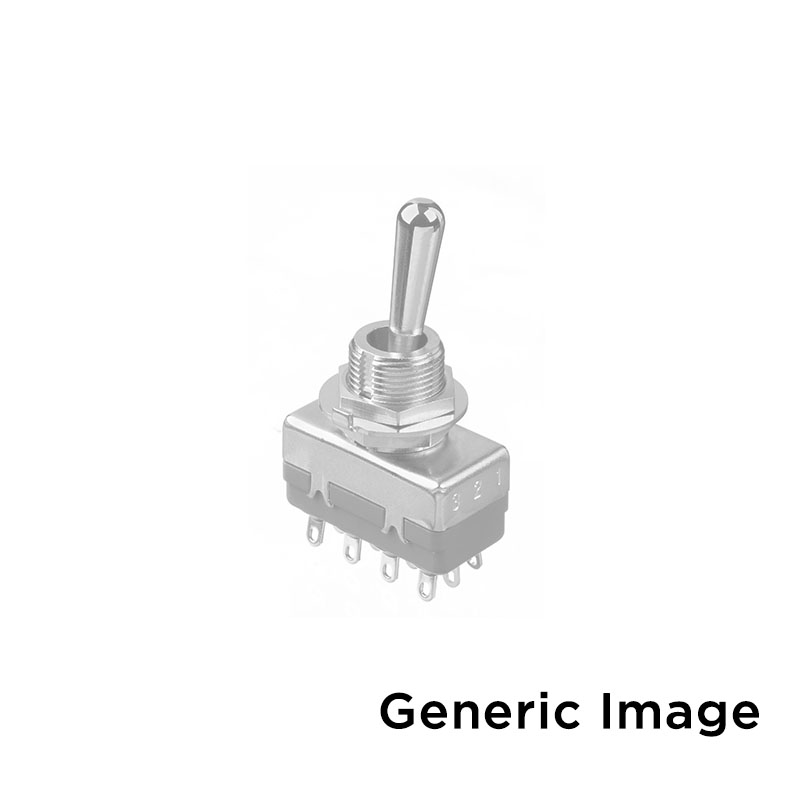

View full reportTechnical parameters
| Power | |
|---|---|
| Max. current/voltage rating with resistive load | - silver contacts (A-AD2-X780) : 4A 30VDC- gold contacts (D) : 100mA 30VDC |
| Environment and package | |
| Operating temperature | -40°C to +85°C |
| Other | |
| Contact bounce | 2 ms max. |
| Contact Materials | Silver |
| Dielectric strength | 1.000 Vrms 50 Hz min. between terminals2.000 Vrms 50 Hz min. between poles and between terminals and frame |
| Electrical Functions | ON ON |
| Finish | Bright Chrome Finish On Actuator |
| Initial contact resistance | 10 mΩ max. |
| Insulation resistance | 1.000 MΩ min. at 500VDC |
| Levers | Standard |
| Minimum load | AD2-X780-D contacts : 10mA 50mV, 10μA 5V min. |
| Number Of Poles | Four Poles |
| Sealing | Epoxy Sealed Terminals |
| Special Options | No Special Requirement |
| Standard panel thickness | 4,5 mm (.177) max. |
| Terminals And Bushing | Solder Lug Terminals |
| Torque | 1,50 Nm (1.10 Ft.lb) max. applied between the 2 nuts |
