ITT Cannon, LLCUnited States

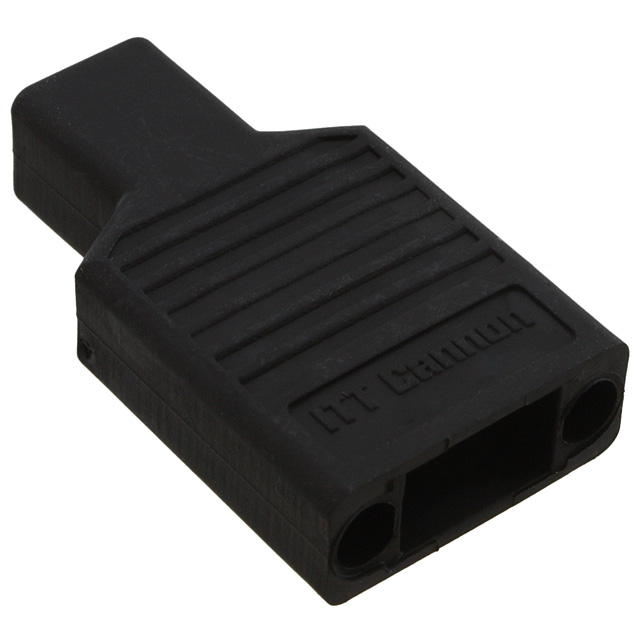

CONN MICRO-D HOUSING RCPT 9POS
All alternatives
View full reportTechnical parameters
| Environment and package | |
|---|---|
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature | -55°C ~ 125°C |
| Package | - |
| Shell Size, Connector Layout | 0.050 Pitch x 0.100 Row to Row |
| Other | |
| Color | Black |
| Connector Style | D-Type, Micro-D |
| Connector Type | Receptacle for Female Contacts |
| Contact Type | Signal |
| Dielectric Material | Thermoplastic |
| Features | Shielded |
| Flange Feature | Mating Side (2-56) |
| Ingress Protection | - |
| Mating Cycles | 500 |
| Mfr | ITT Cannon, LLC |
| Note | Contacts Not Included |
| Number of Positions | 9 |
| Number of Rows | 2 |
| Product Status | Obsolete |
| Series | MDSM |
| Shell Finish Thickness | - |
| Shell Material, Finish | Steel, Tin-Nickel Plated |
