1216500000
WeidmüllerGermany

1216500000

ActiveHeavy Duty Connector Inserts, Modules

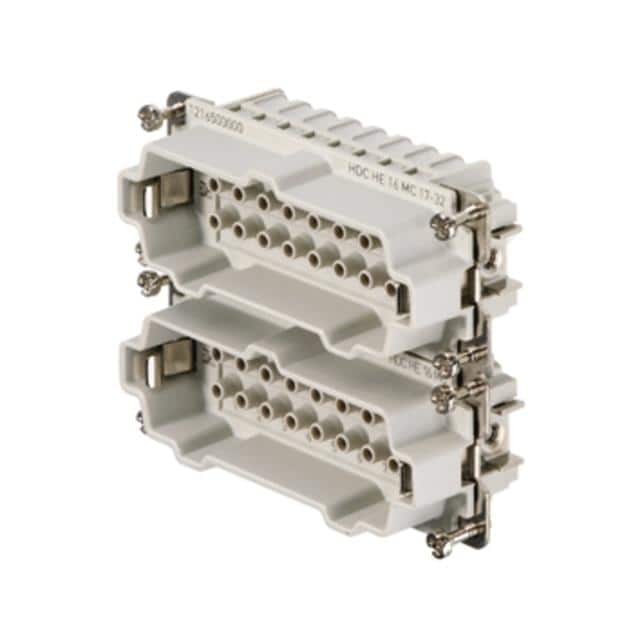

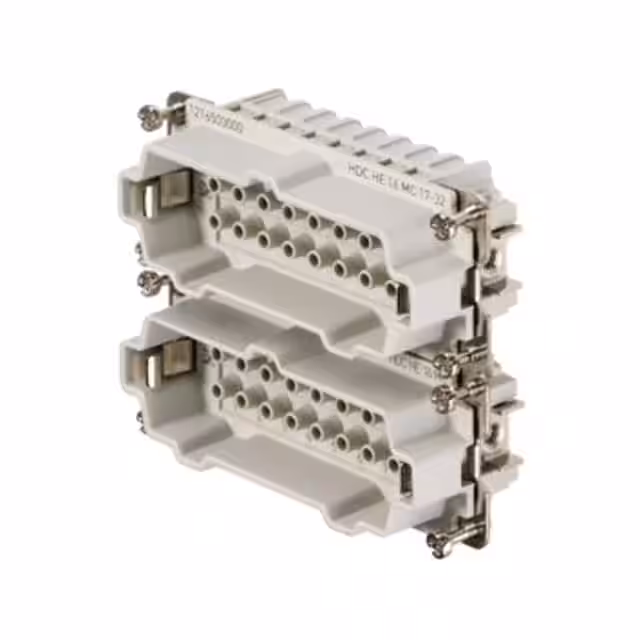

INSERT MALE 16POS+1GND CRIMP

See alternativesAsk AI FAE

All alternatives

View full report

Technical parameters

Power
Current Rating (Amps)16A
Voltage Rating500V
Environment and package
Operating Temperature-40°C~125°C
PackageBulk
Size6
Other
Color-
Connector TypeInsert without Contacts
Contact Finish-
Contact Material-
Contact TypeHE
GenderMale
Housing MaterialPolycarbonate (PC), Glass Filled
Material Flammability RatingUL94 V-0
MfrWeidmüller
Number of Positions16+Ground
Product StatusActive
SeriesRockstar® HE
Termination StyleCrimp

Documents

No documents are linked to this part yet.
