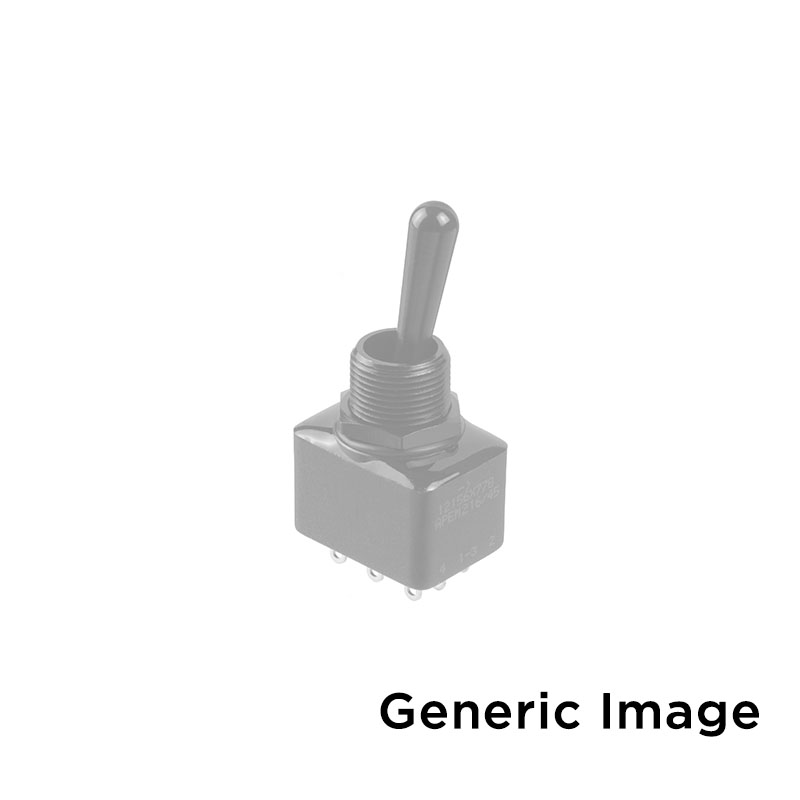

The 12165-12VX778 Panel Switch features four poles, ON MOM functionality, and smooth levers for precise control, making it ideal for lights, motors, and various electrical applications.
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Max. current/voltage rating with resistive load | 4A 28VDC |
| Environment and package | |
| Operating temperature | -40°C to +85°C |
| Other | |
| Contact bounce | 2 ms max. |
| Dielectric strength | 1.000 Vrms 50 Hz min. between terminals2.000 Vrms 50 Hz min. between poles |
| Electrical Functions | ON MOM |
| Electrical life | - At 4A 28VDC :20.000 cycles (10.000 for functions 5, 4-1R, 4-2R)- At low level (50mV 10mA) :150.000 cycles (switches with 2 maintained positions)100.000 cycles (switches with 3 maintained positions)50.000 cycles (momentary functions 7, 8, 4-1R, 4-2R, 5) |
| Environmental Specifications | Front panel sealing by two O-rings Flatted bush for precise orientation |
| Fluorescent Tip | None |
| Humidity test | 56 days, 93 % R.H., 40°C (IEC 68-2-3) |
| Initial contact resistance | 10 mΩ max. |
| Insulation resistance | 1.000 MΩ min. at 500VDC |
| Levers | Functions 7-8-441r |
| Minimum load | 10mA 50mV, 10μA 5VDC |
| Number Of Poles | Four Poles |
| Panel thickness | 8 mm (.314) max. - 3 mm (.118) min. |
| Salt spray test | 96 hours (IEC 68-2-11) |
| Shock test | 50g - 11ms (IEC 68-2-27) |
| Terminals And Bushing | Solder Lug Terminals |
| Torque | 1,50 Nm (1.10 Ft.lb) max. applied to nut |
| Vibrations | 10-500 Hz - 10g (IEC68-2-6) |
| X778 | High Performance Fully Sealed Black Switches |
