View full reportTechnical parameters
| Environment and package | |
|---|---|
| Ambienttemperature | -40°C ... +85°C |
| Flush-mount | yes |
| Headdimensions (mm) | 5 |
| Height (mm) | 7 |
| Mounting | PCB |
| Mounting diameter (mm) | 4 |
| Other | |

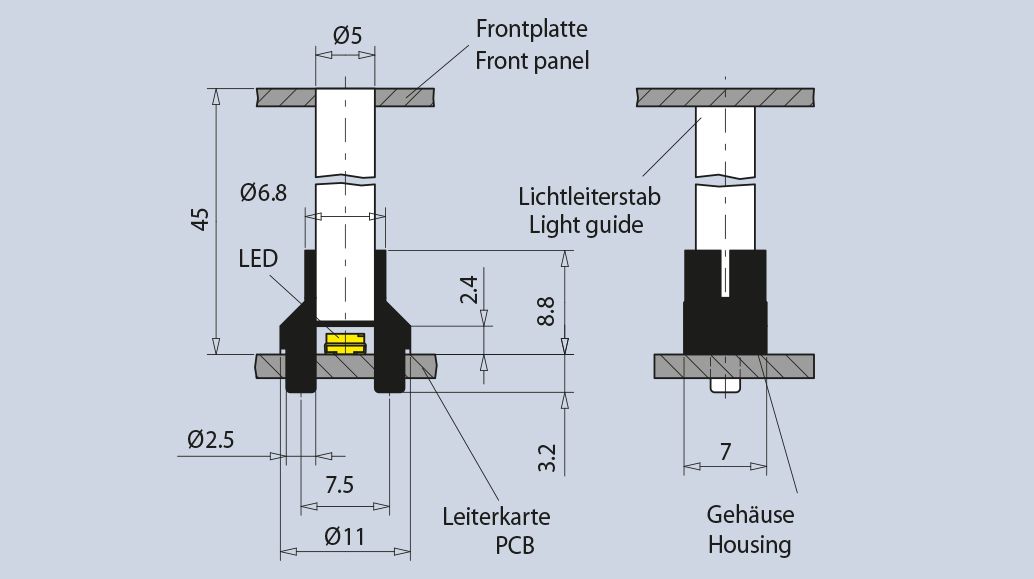

| Bez 1 | Single light guide |
| Bez 2 | PCB planar round D=5 L=45 |
| bildthumbnail | 1216_1005.jpg |
| Bore diameter (mm) | 2,4 |
| ESD protection | < 12 kV |
| Headlength (mm) | 36,2 |
| Headshape | round |
| Headtype | planar |
| ledtype | l |
| Length (mm) | 45 |
| Material | plastic |
| Material 1 | PMMA |
| Material 2 | PC |
| MOQ 2 | 1000 |
| Orientation | vert. |
| Partnumber | 1216.1005 |
| rank_math_internal_links_processed | 1 |
| Stock | yes |
| Type | Single light guide |
| UL-listing | yes |
| Width (mm) | 11 |
