Pololu CorporationUnited States

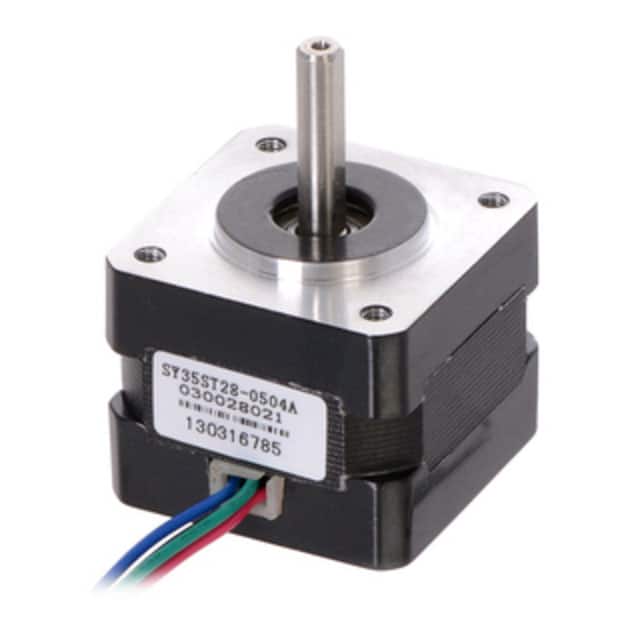

STPR MTR BIPOLAR 10V 0.5A/PHASE
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current Rating (Amps) | 500 mA |
| Voltage - Rated | 10VDC |
| AC and DC characteristics | |
| Accuracy | - |
| Environment and package | |
| Mounting Hole Spacing | 1.023" (26.00mm) |
| NEMA Frame Size | 14 |
| Operating Temperature | -20°C~50°C |
| Package | - |
| Size / Dimension | Square - 1.386" x 1.386" (35.20mm x 35.20mm) |
| Other | |
| Approval Agency | - |
| Coil Resistance | 20 Ohms |
| Coil Type | Bipolar |
| Diameter - Shaft | 0.197" (5.00mm) |
| Features | Flatted Shaft |
| Length - Shaft and Bearing | 0.827" (21.00mm) |
| Mfr | Pololu Corporation |
| Product Status | Active |
| Rotor Inertia | - |
| Series | - |
| Step Angle | 1.8° |
| Steps per Revolution | 200 |
| Termination Style | Wire Leads |
| Torque - Holding (oz-in / mNm) | 14 / 98.86 |
| Type | Hybrid |
| Weight | 0.319 lb (144.7 g) |
