Alpha WireUnited States

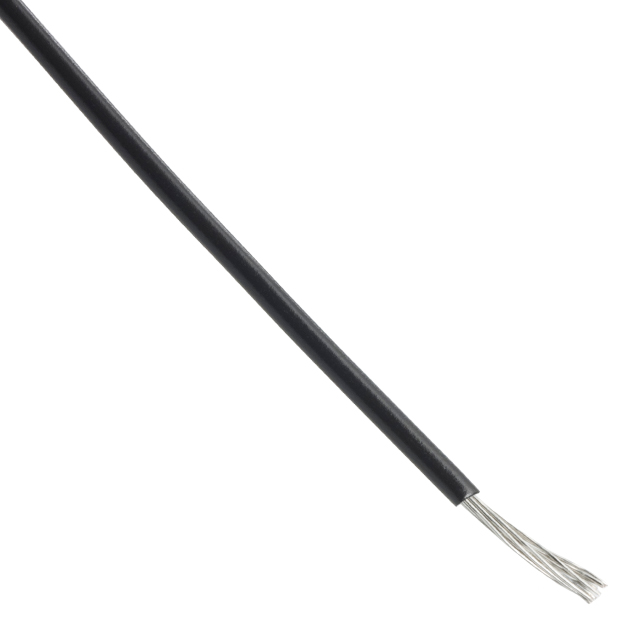

HOOK-UP STRND 18AWG BLACK 1000'
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Voltage | 600V |
| Environment and package | |
| Grade | - |
| Operating Temperature | -60°C ~ 200°C |
| Package | Spool |
| Qualification | MIL-DTL-16878/4 Type E |
| Other | |
| Base Product Number | 11807 |
| Cable Type | Hook-Up |
| Conductor Material | Copper, Silver Coated |
| Conductor Strand | 7/26 |
| Features | - |
| Jacket Color | Black |
| Jacket (Insulation) Diameter | 0.068" (1.73mm) |
| Jacket (Insulation) Material | Polytetrafluoroethylene (PTFE) |
| Jacket (Insulation) Thickness | 0.010" (0.25mm) |
| Length | 1000.0' (304.8m) |
| Mfr | Alpha Wire |
| Product Status | Obsolete |
| Ratings | - |
| Series | - |
| Wire Gauge | 18 AWG |
Documents
No documents are linked to this part yet.
