Song Chuan(松川)China
Compact size miniature PCB relays.; Special design of high performance for motor control of wiper and sunroof, and window lift control.; High temperature endurance up to 125°C.
All alternatives
View full reportTechnical parameters
Key specs
Coil voltage12 V

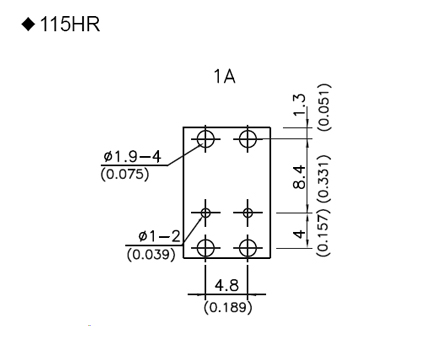

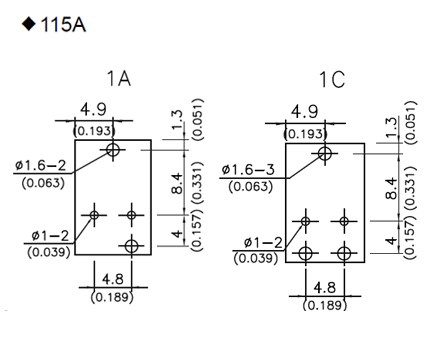

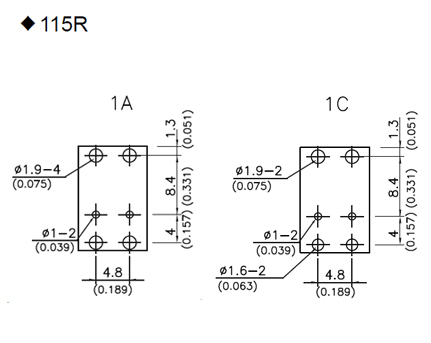

| Power | |
|---|---|
| Coil voltage | DC | 12V |
| Max. Allowable Contact current(A) | 115:20A115A:15A115H:35A |
| Power consumption | DC | 115&115H:approx. 0.64W115A:Approx. 0.78W |
| Other | |
| 1. | 115 | — | Basic series designation |
| 2. | Blank | — | Standard type |
| 3. | Blank | — | Wave soldering |
| 4. | 1A | — | Single pole normally open |
| 5. | H | — | Contact material AgSnO |
| 6. | C | — | Flux tight |
| 7. | □ | — | Coil voltage (please refer to thecoil rating data for the availability) |
| AC | —— |
| Contact and coil | 500V |
| Contact circuits | —— |
| Contact configuration | 1A、1C |
| Contact rating | Resistive load | 115:NO: 20A 14VDCNC: 10A 14VDC115A:NO: 15A 14VDCNC: 10A 14VDC115H:NO: 35A 14VDC |
| Dielectric strength | Open contact | 500V |
| Electrical(Min.) | 100K |
| Life expectancy | Mechanical(Min.) | 1×106(frequency 18,000 ops./hr) |
| Outline (L×W×H) mm | 14.8×9.8×18.2 |
