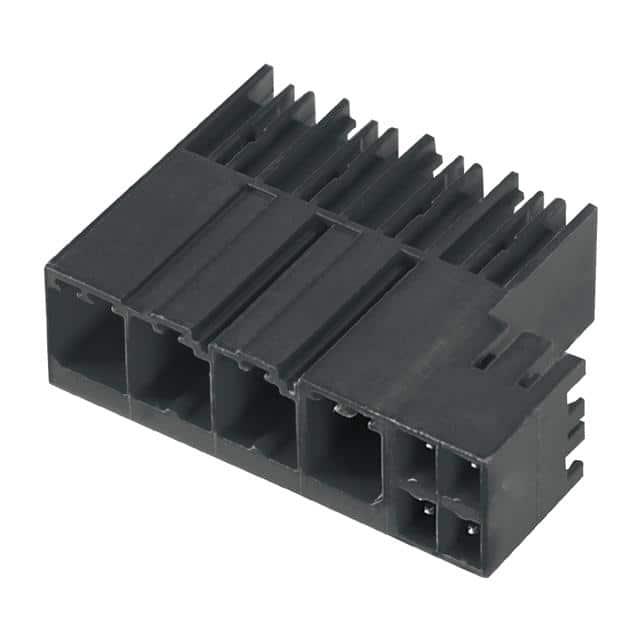

TERM BLOCK HDR 12POS 7.62MM
All alternatives
View full reportTechnical parameters
Key specs
Positions12
Pitch7.62 mm
| Power | |
|---|---|
| Current - IEC | 41A |
| Current - UL | 33 A |
| Voltage - IEC | 1 kV |
| Voltage - UL | 300 V |
| Environment and package | |
| Insulation Height | 0.449" (11.40mm) |
| Mounting Type | Through Hole |
| Operating Temperature | -50°C~130°C |
| Package | Bulk |
| Screw Size | - |
| Other | |
| Color | Black |
| Contact Material | Copper Alloy |
| Contact Mating Finish | Tin |
| Contact Tail Length | 0.138" (3.50mm) |
| Features | - |
| Header Orientation | 90°, Right Angle |
| Housing Material | Polyamide (PA), Nylon, Glass Filled |
| Ingress Protection | IP20 |
| Material Flammability Rating | UL94 V-0 |
| Mfr | Weidmüller |
| Number of Levels | Hybrid |
| Number of Positions | 12 |
| Pitch | 0.300" (7.62mm) |
| Plug Wire Entry | - |
| Positions Per Level | 12 (4 Power + 8 Signal) |
| Product Status | Active |
| Series | Omnimate SV |
| Termination Style | Solder |
| Torque - Screw | - |
| Type | Header, Male Pins, Shrouded (4 Side) |
| Wire Gauge or Range - AWG | - |
| Wire Gauge or Range - mm² | - |
| Wire Strip Length | - |
