Phoenix ContactGermany

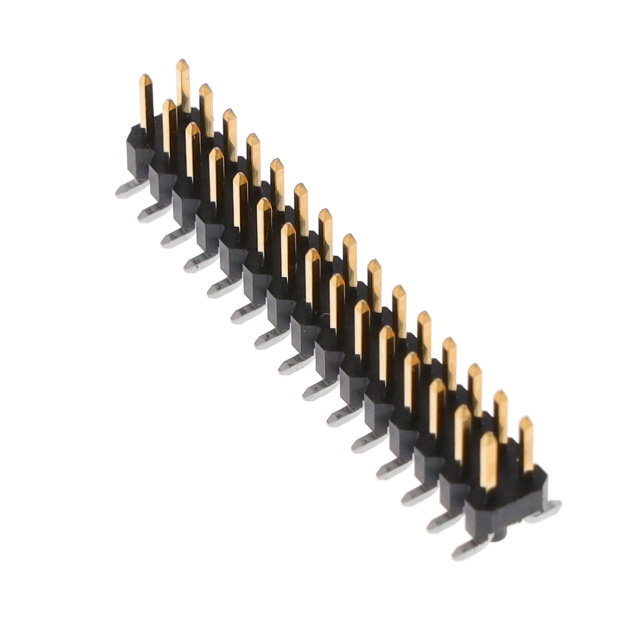

SMD MALE STRIP, NOMINAL CURRENT
All alternatives
View full reportTechnical parameters
Key specs
Positions30
Rows2
Pitch2.54 mm
GenderMale
| Power | |
|---|---|
| Current Rating (Amps) | - |
| Voltage Rating | - |
| Environment and package | |
| Insulation Height | 0.098" (2.50mm) |
| Mated Stacking Heights | - |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C |
| Package | Tube |
| Other | |
| Applications | - |
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | - |
| Contact Finish Thickness - Post | - |
| Contact Length - Mating | 0.197" (5.00mm) |
| Contact Length - Post | - |
| Contact Material | Copper Alloy |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Features | Board Guide |
| Ingress Protection | - |
| Insulation Color | Black |
| Insulation Material | Polyamide (PA), Nylon |
| Material Flammability Rating | UL94 V-0 |
| Mfr | Phoenix Contact |
| Number of Positions | 30 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Overall Contact Length | - |
| Pitch - Mating | 0.100" (2.54mm) |
| Product Status | Active |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Series | FQ |
| Shrouding | Unshrouded |
| Style | Board to Board |
| Termination | Solder |
