Phoenix ContactGermany

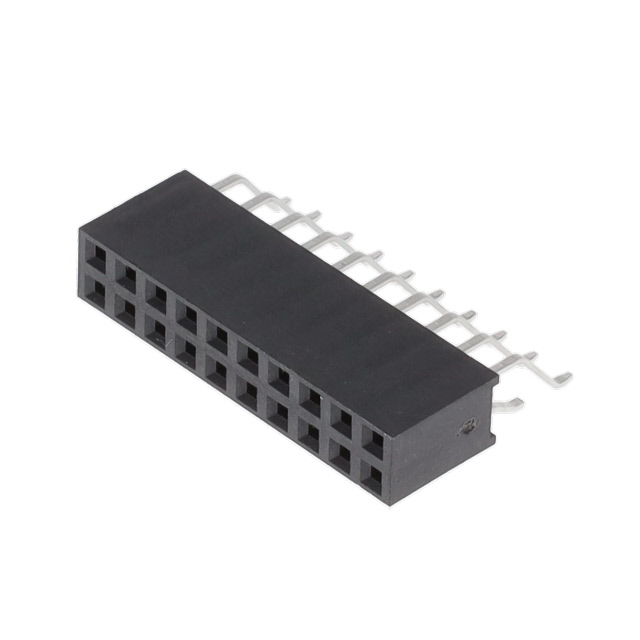

SMD SKIRTING, NOMINAL CURRENT AT
All alternatives
View full reportTechnical parameters
Key specs
Positions20
Rows2
Pitch2.54 mm
GenderFemale
| Power | |
|---|---|
| Current Rating (Amps) | - |
| Voltage Rating | - |
| Environment and package | |
| Insulation Height | 0.197" (5.00mm) |
| Mated Stacking Heights | - |
| Mounting Type | Surface Mount, Right Angle |
| Operating Temperature | -40°C ~ 125°C |
| Package | Tube |
| Other | |
| Applications | - |
| Connector Type | Receptacle |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | - |
| Contact Finish Thickness - Post | - |
| Contact Length - Post | - |
| Contact Material | Copper Alloy |
| Contact Shape | Square |
| Contact Type | Female Socket |
| Fastening Type | Push-Pull |
| Features | - |
| Ingress Protection | - |
| Insulation Color | Black |
| Insulation Material | Polyamide (PA), Nylon |
| Material Flammability Rating | UL94 V-0 |
| Mfr | Phoenix Contact |
| Number of Positions | 20 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Pitch - Mating | 0.100" (2.54mm) |
| Product Status | Active |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Series | FQ |
| Style | Board to Board |
| Termination | Solder |
