Adels-ContactGermany

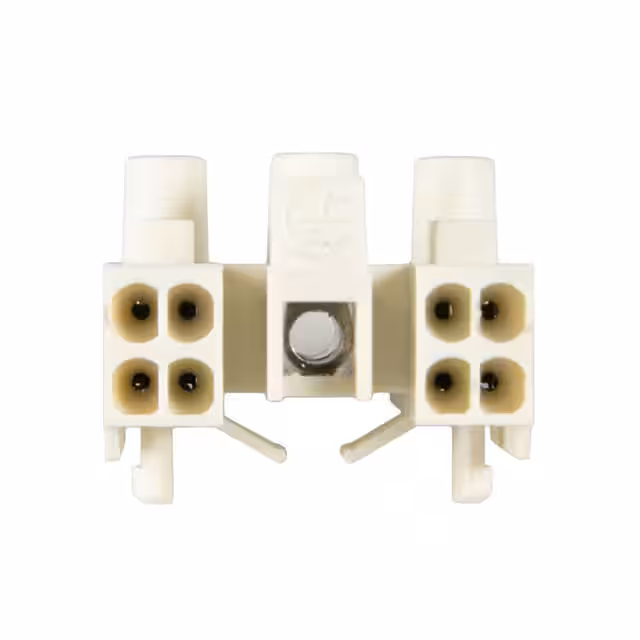

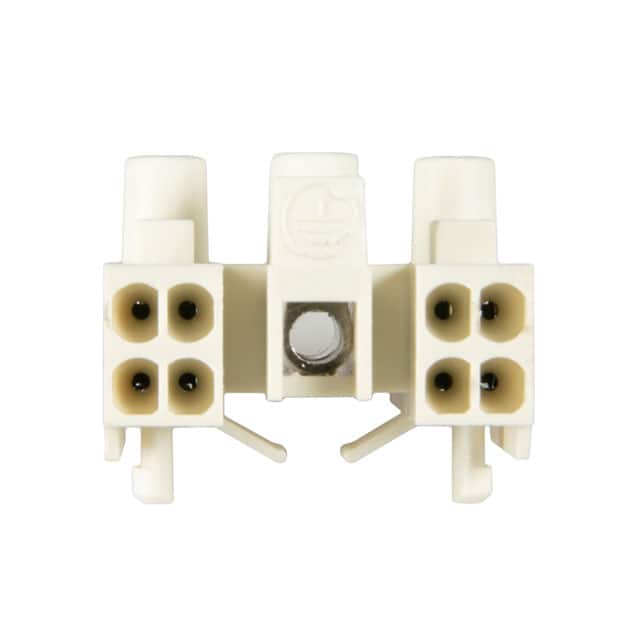

CONN TERM STRIP 3POLE SCREWLESS
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current Rating (Amps) | 6A, 13.5A |
| Voltage Rating | 450V |
| Environment and package | |
| Mounting Type | Panel Mount |
| Operating Temperature | 100°C |
| Package | Bulk |
| Other | |
| Connector Type | Receptacle, Push-In |
| Contact Finish | - |
| Contact Material | Brass, Steel |
| Fastening Type | - |
| Features | Mounting Peg |
| Housing Color | White |
| Housing Material | Polyamide (PA66), Nylon 6/6 |
| Ingress Protection | - |
| Mating Cycles | - |
| Mfr | Adels-Contact |
| Number of Positions | 5 |
| Pitch | - |
| Product Status | Active |
| Series | 900 EQ |
| Style | Board to Cable/Wire |
| Termination | Push In |
| Wire Gauge | 0.5 ~ 1.0mm² |
