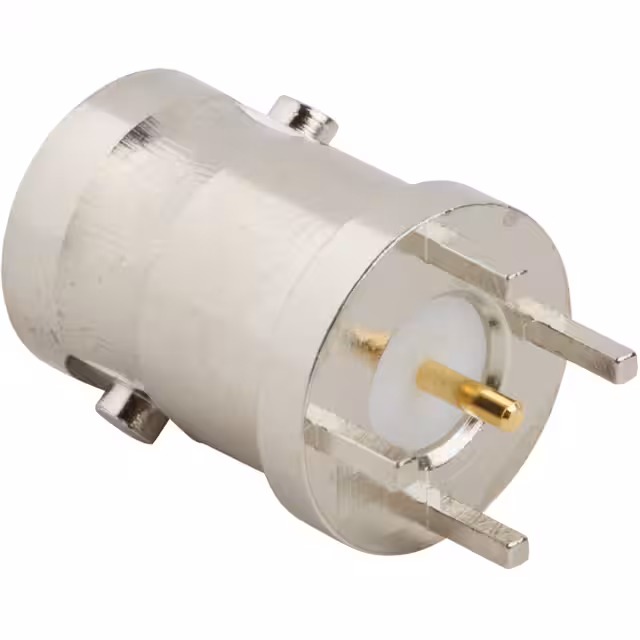

BNC STRAIGHT PCB JACK, THROUGH H
All alternatives
View full reportTechnical parameters
Key specs
Connector styleBNC
GenderFemale
Impedance75 Ω
Max frequency4 GHzMax
| AC and DC characteristics | |
|---|---|
| Frequency - Max | 4 GHz |
| Impedance | 75Ohm |
| Environment and package | |
| Mounting Feature | - |
| Mounting Type | Through Hole |
| Operating Temperature | -65°C~165°C |
| Package | Bulk |
| Other | |
| Base Product Number | 112405 |
| Body Finish | Nickel |
| Body Material | Brass |
| Cable Group | - |
| Center Contact Material | Phosphor Bronze |
| Center Contact Plating | Gold |
| Connector Style | BNC |
| Connector Type | Jack, Female Socket |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Bayonet Lock |
| Features | - |
| Housing Color | Silver |
| Ingress Protection | - |
| Insertion Loss | - |
| Mating Cycles | 500 |
| Mfr | Amphenol RF |
| Number of Ports | 1 |
| Product Status | Active |
| Series | - |
| Shield Termination | Solder |
