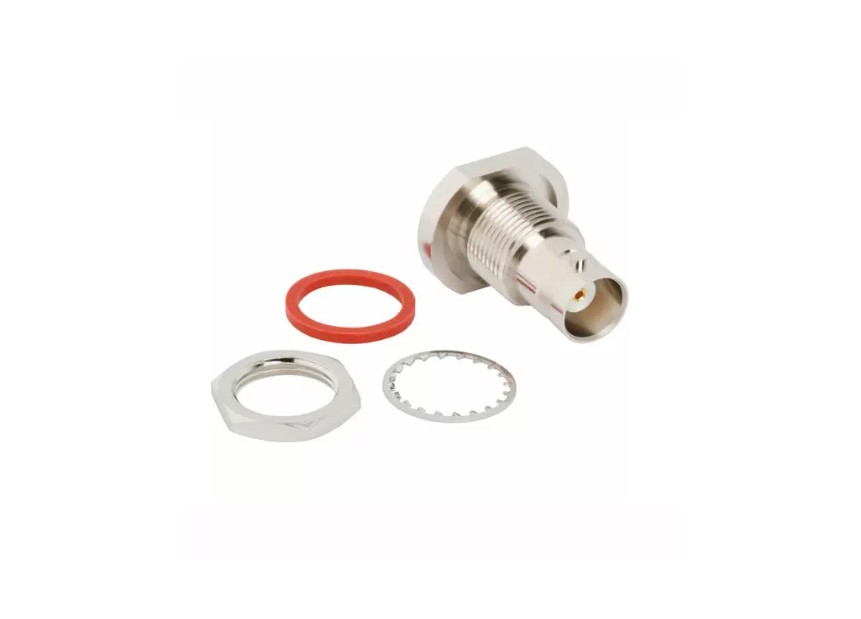

112405-10-2
AmphenolUnited States

112405-10-2

ActiveCoaxial Connector (RF) Assemblies

BNC STRAIGHT PCB JACK, THROUGH H

See alternativesAsk AI FAEDatasheet PDF

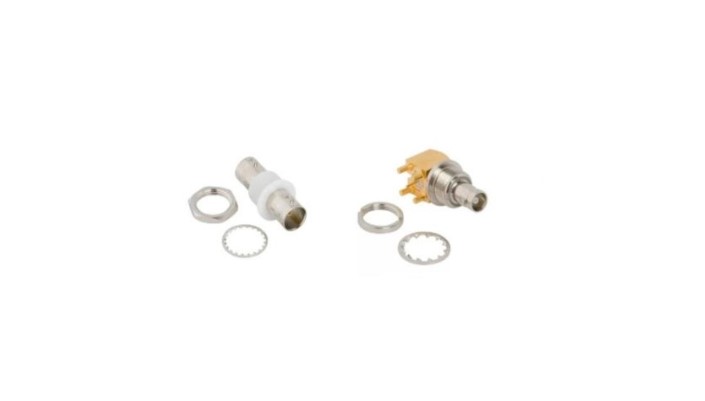

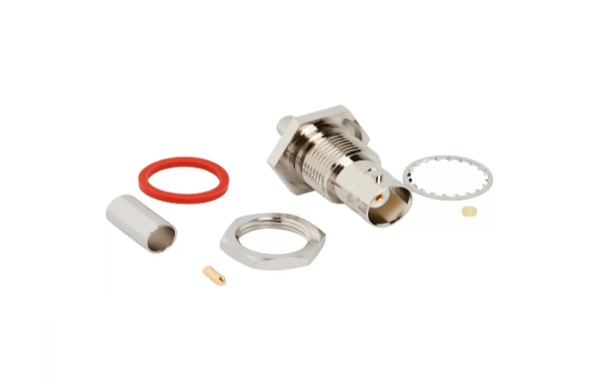

All alternatives

View full report

Technical parameters

Key specs

Connector styleBNC
GenderFemale
Impedance75 Ω
Max frequency4 GHzMax
AC and DC characteristics
Frequency - Max4 GHz
Impedance75Ohm
Environment and package
Mounting Feature-
Mounting TypeThrough Hole
Operating Temperature-65°C~165°C
PackageBulk
Other
Base Product Number112405
Body FinishNickel
Body MaterialBrass
Cable Group-
Center Contact MaterialPhosphor Bronze
Center Contact PlatingGold
Connector StyleBNC
Connector TypeJack, Female Socket
Contact TerminationSolder
Dielectric MaterialPolytetrafluoroethylene (PTFE)
Fastening TypeBayonet Lock
Features-
Housing ColorSilver
Ingress Protection-
Insertion Loss-
Mating Cycles500
MfrAmphenol RF
Number of Ports1
Product StatusActive
Series-
Shield TerminationSolder
