1121

Active

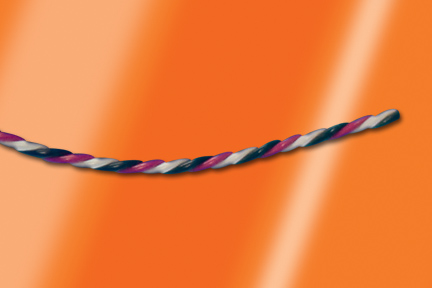

Alpha Wire 28 AWG, 3 Conductor Communication Cable provides precise signal transmission in computer and control applications.

All alternatives

Power
1) Voltage Rating	200 V RMS
Environment and package
1) Temperature Range	-20 to 80°C
Other
1) CE	EU Low Voltage Directive 2014/35/EU
(1) Color Code	Alpha Wire Color Code D
1) Component 1	3 X 1 COND
2) Bend Radius	10X Cable Diameter
2) Cable Assembly	3 Components Cabled
2) Capacitance	36 pF/ft @1 kHz, Nominal Conductor to Conductor
3) California Proposition 65	This product may contain substances known to the State of California to cause Cancer or Reproductive Harm, but is exempt from labeling based on the Consent Judgement. See the Alpha Wire website for more information.
3) Ground Capacitance	65 pF/ft @1 kHz, Nominal
3) Pull Tension	6.8 Lbs, Maximum
3) Shield	Tinned Copper BRAID Shield,80% Coverage, Min.
4) Inductance	0.22 μH/ft, Nominal
5) Conductor DCR	65 Ω/1000ft @20°C, Nominal
6) OA Shield DCR	7.4 Ω/1000ft @20°C, Nominal
a) 1000 FT	10.5 x 5 x 3.5 Continuous length
a) Color(s)	CLEAR
a) Twists	12.0 Twists/foot (min)
b) 500 FT	6.5 x 6 x 1.9 Continuous length
b) Orientation	Components to be arranged from INSIDE LAYER to OUTSIDE LAYER
b) Print	*ALPHA WIRE- P/N 1121 CE ROHS * = Factory Code**
c) 100 FT	6.5 x 2 x 1.9 Continuous length
c) Core Wrap	Clear Mylar Tape, 25% Overlap, Min.
Color	BLACK
Cond	1
Electrical Properties	(For Engineering purposes only)
Packaging	Flange x Traverse x Barrel (inches)
