TE ConnectivitySwitzerland

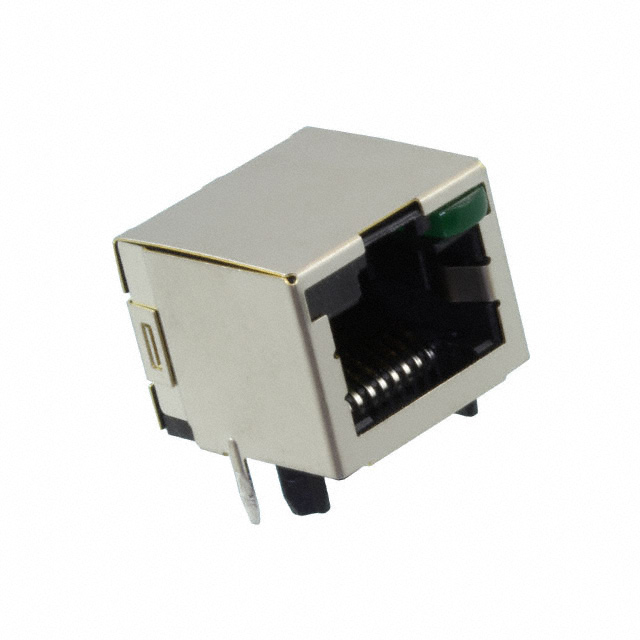

CONN MOD JACK 8P8C R/A SHIELDED
All alternatives
View full reportTechnical parameters
Key specs
Rows1
GenderFemale
| Environment and package | |
|---|---|
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 85°C |
| Package | Tray |
| Other | |
| Connector Type | Jack |
| Contact Finish | Tin-Lead |
| Contact Finish Thickness | 150.0µin (3.81µm) |
| Contact Material | Phosphor Bronze |
| Features | Board Guide |
| Housing Material | Thermoplastic |
| Ingress Protection | - |
| LED Color | Green |
| Mfr | TE Connectivity AMP Connectors |
| Number of Ports | 1 |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Number of Rows | 1 |
| Orientation | 90° Angle (Right) |
| Product Status | Obsolete |
| Ratings | Cat5 |
| Series | - |
| Shielding | Shielded |
| Tab Direction | Up |
| Termination | Solder |
