APEM Inc.France

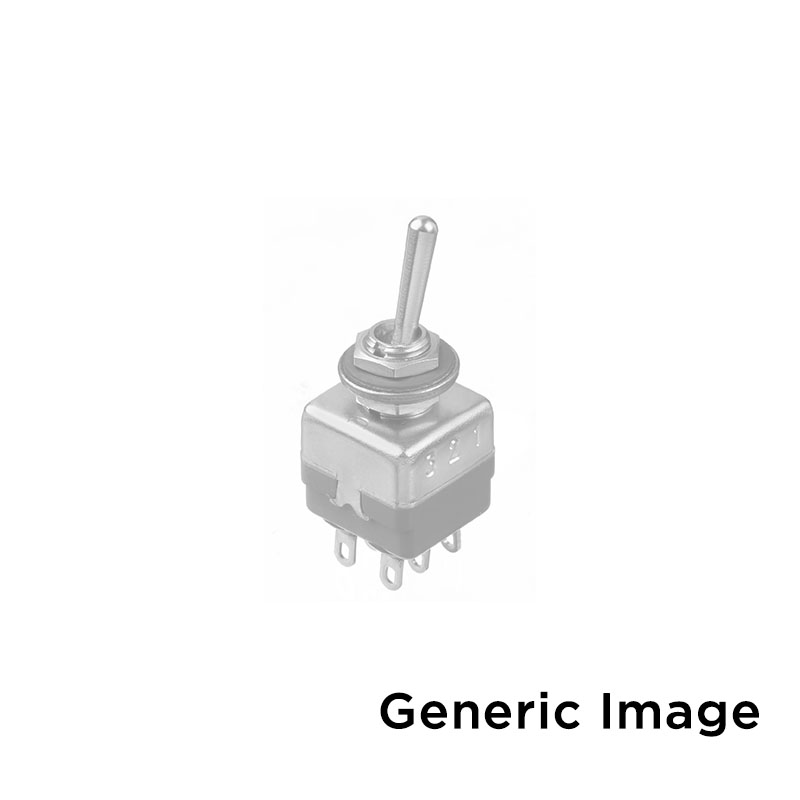

SWITCH TOGGLE 3PDT 4A 125V
All alternatives
View full reportTechnical parameters
Key specs
Circuit3PDT
Switch functionOn-Off-On
Current rating4 AMax
Voltage rating125 VMax
| Power | |
|---|---|
| Current Rating (Amps) | 4A (AC/DC) |
| Illumination Voltage (Nominal) | - |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 30 V |
| Environment and package | |
| Mounting Type | Panel Mount |
| Operating Temperature | -40°C~85°C |
| Package | Bulk |
| Panel Cutout Dimensions | Circular - 6.50mm Dia |
| Other | |
| Actuator Length | 11.30mm |
| Actuator Material | Brass, Chrome Plated |
| Actuator Type | Standard Round |
| Base Product Number | 11159 |
| Bushing Thread | 1/4-40 |
| Circuit | 3PDT |
| Electrical Life | 50,000 Cycles |
| Features | Epoxy Sealed Terminals |
| Illumination | Non-Illuminated |
| Illumination Type, Color | - |
| Ingress Protection | - |
| Mfr | APEM Inc. |
| Product Status | Active |
| Series | 11000 |
| Switch Function | On-Off-On |
| Termination Style | Solder Lug |
