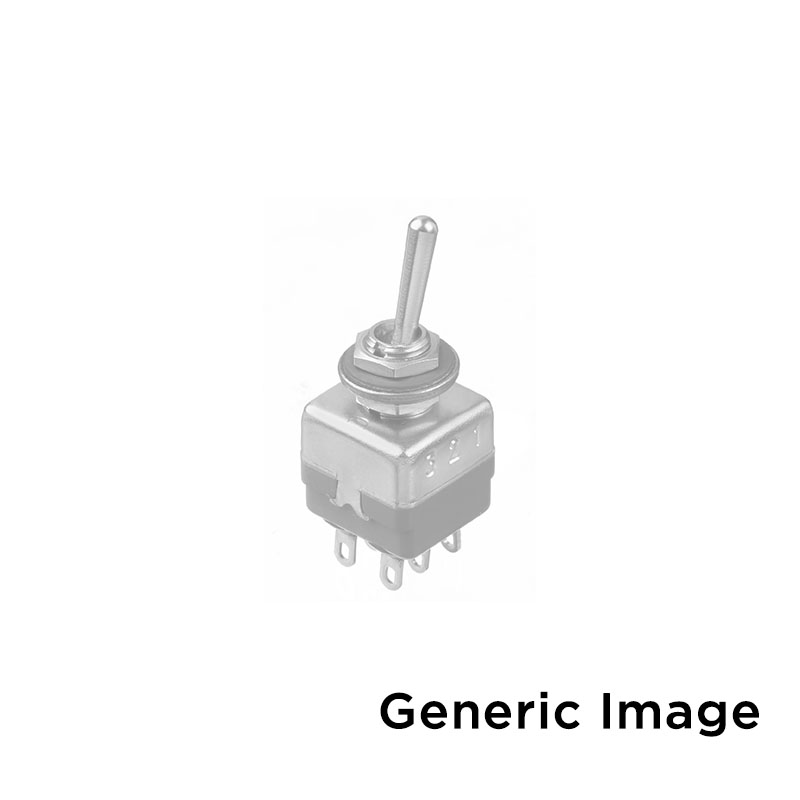

Panel Switch 11157AD2KX408 features a three-pole configuration, MOM OFF MOM functions, and standard levers for reliable control and secure connections.
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Max. current/voltage rating with resistive load | - silver contacts (A-AD2-X780): 4 A 30 VDC- gold contacts (D): 100 mA 30 VDC |
| Environment and package | |
| Operating temperature | -40 °C to +85 °C (-40 °F to 185 °F) |
| Other | |
| Contact bounce | 2 ms max |
| Dielectric strength | 1,000 Vrms 50 Hz min. between terminals2,000 Vrms 50 Hz min. between poles and between terminals and frame |
| Electrical Functions | MOM OFF MOM |
| Finish | Nickel-Plated |
| Initial contact resistance | 10 mΩ max. |
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Levers | Standard |
| Minimum load | AD2-X780-D contacts: 10 mA 50 mV, 10 µA 5 V min. |
| Number Of Poles | Three Poles |
| Sealing | Front Panel Sealing with One O-Ring and Sealing Washer |
| Special Options | Front Panel Sealing by Two O-Rings |
| Standard panel thickness | 2.5 mm (.098) max. |
| Terminals | Solder Lug or Straight PC |
| Torque | 1.25 Nm (.92 Ft.lb) max. applied between the 2 nuts |
