Keystone ElectronicsUnited States

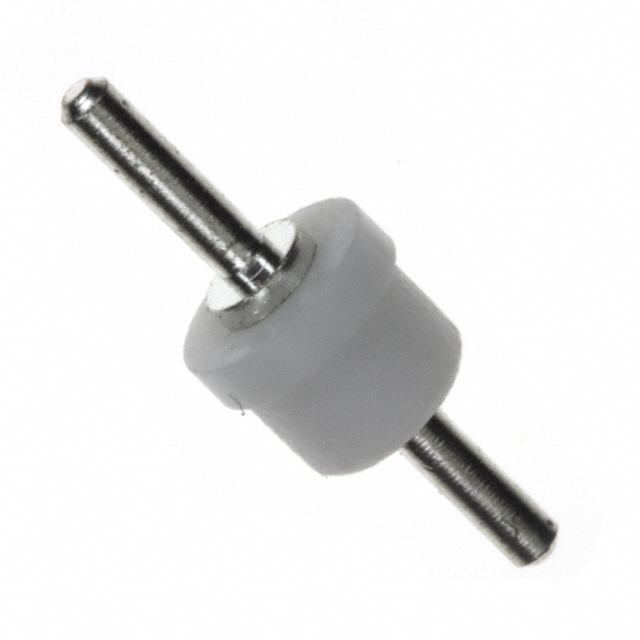

CONN PC PIN CIRC 0.040DIA TIN
All alternatives
View full reportTechnical parameters
| Environment and package | |
|---|---|
| Mounting Hole Diameter | 0.136" (3.45mm) |
| Mounting Type | Through Hole |
| Package | Bulk |
| Pin Size - Above Flange | 0.040" (1.02mm) Dia |
| Pin Size - Below Flange | 0.040" (1.02mm) Dia |
| Other | |
| Board Thickness | 0.062" (1.57mm) |
| Contact Finish | Tin |
| Contact Finish Thickness | - |
| Contact Material | Brass |
| Flange Diameter | 0.172" (4.37mm) |
| Insulation | Insulated |
| Insulation Color | White |
| Length - Above Flange | 0.210" (5.33mm) |
| Length - Below Flange | 0.265" (6.73mm) |
| Length - Overall | 0.515" (13.08mm) |
| Material - Insulation | Polytetrafluoroethylene (PTFE) |
| Mfr | Keystone Electronics |
| Product Status | Active |
| Series | - |
| Terminal Style | Double End |
| Terminal Type | PC Pin |
| Termination | Press-Fit |
