ASI-EzUnited States

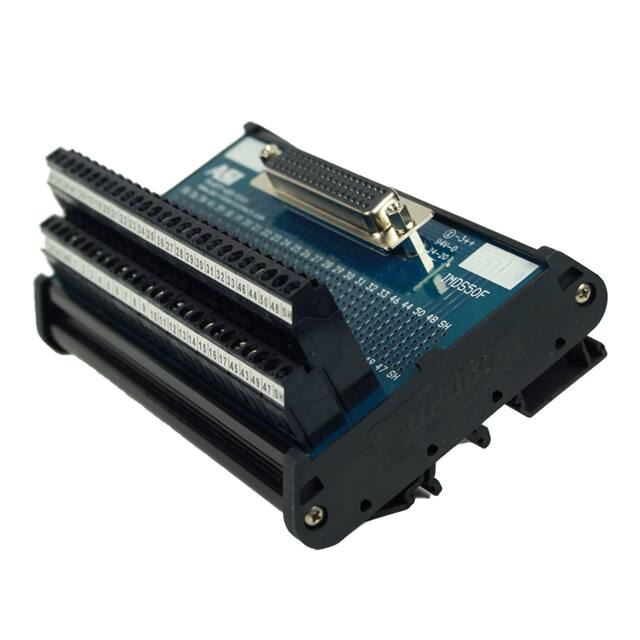

INT. MODULE 50-PIN D-SUB CONNECT
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current Rating (Per Contact) | 2.5 A |
| Voltage - Rated | 125VAC |
| Environment and package | |
| Operating Temperature | - |
| Package | Tape & Box (TB) |
| Other | |
| Control Side Cable Retainer | - |
| Control Side Connection | D-Sub, Female |
| Features | Threaded Locking Inserts |
| Length | 5.591" (142.00mm) |
| Mfr | ASI-Ez |
| Positions / Poles | 50 |
| Process Side Connection | Terminal Blocks - Screw Connection |
| Product Status | Active |
| Series | IMDS |
| Width | - |
| Wire Gauge | 12-26 AWG |
Documents
No documents are linked to this part yet.
