Würth ElektronikGermany

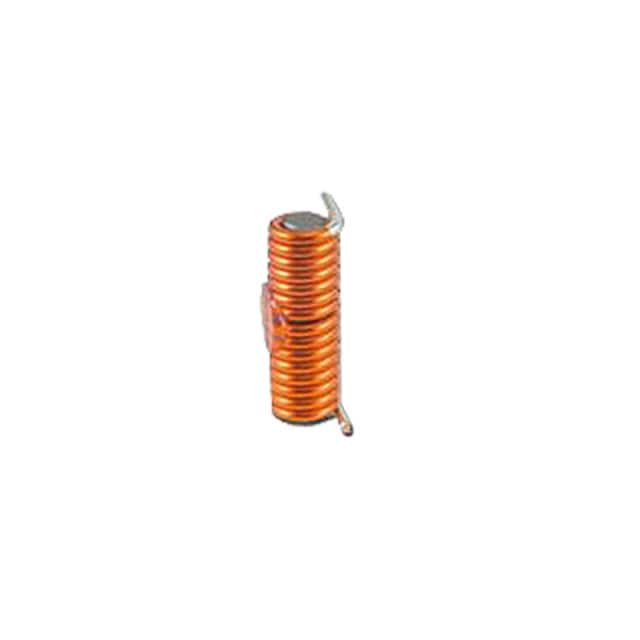

FIXED IND 2.72UH 10A 6.4MOHM SMD
All alternatives
View full reportTechnical parameters
Key specs
Inductance2.72 µH
Rated current10 AMax
Saturation current18 AMax
DC resistance6.4 mΩMax
| Power | |
|---|---|
| Current Rating (Amps) | 10 A |
| Current - Saturation (Isat) | 18A |
| AC and DC characteristics | |
| Frequency - Self Resonant | - |
| Inductance Frequency - Test | 100 kHz |
| Environment and package | |
| Height - Seated (Max) | - |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~150°C |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Package / Case | Radial, Horizontal Cylinder (Open) |
| Size / Dimension | 0.256" Dia x 0.591" L (6.50mm x 15.00mm) |
| Supplier Device Package | - |
| Other | |
| DC Resistance (DCR) | 6.4mOhm |
| Inductance | 2.72 µH |
| Material - Core | - |
| Mfr | Würth Elektronik |
| Product Status | Obsolete |
| Q @ Freq | - |
| Ratings | AEC-Q200 |
| Series | WE-SDP |
| Shielding | Unshielded |
| Tolerance | ±20% |
| Type | Wirewound |
Documents
No documents are linked to this part yet.
