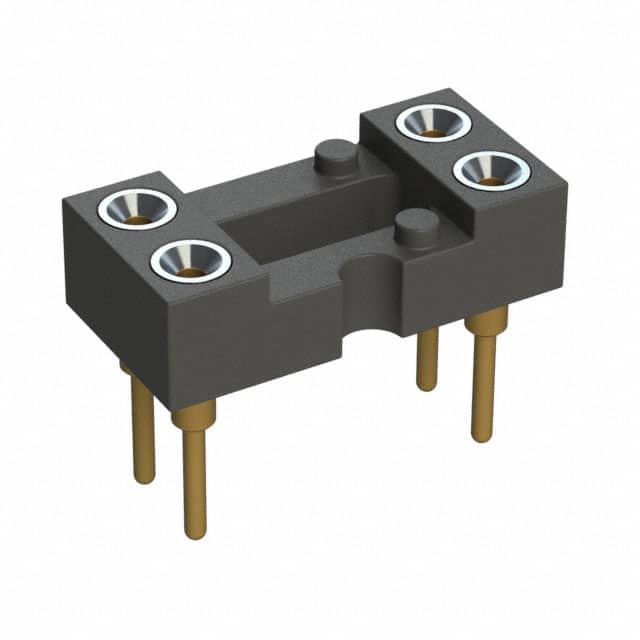

110-13-304-41-001000
Mill-Max Manufacturing Corp.United States

110-13-304-41-001000

ActiveIC Sockets

CONN IC DIP SOCKET 4POS GOLD

See alternativesAsk AI FAE

All alternatives

View full report

Technical parameters

Key specs

Pitch2.54 mm
Current rating3 AMax
Power
Current Rating (Amps)3 A
Environment and package
Mounting TypeThrough Hole
Operating Temperature-55°C~125°C
PackageTube
Other
Base Product Number110-13
Contact Finish - MatingGold
Contact Finish - PostGold
Contact Finish Thickness - Mating30.0µin (0.76µm)
Contact Finish Thickness - Post10.0µin (0.25µm)
Contact Material - MatingBeryllium Copper
Contact Material - PostBrass Alloy
Contact Resistance-
FeaturesOpen Frame
Housing MaterialPolycyclohexylenedimethylene Terephthalate (PCT), Polyester
Material Flammability Rating-
MfrMill-Max Manufacturing Corp.
Number of Positions or Pins (Grid)4 (2 x 2)
Pitch - Mating0.100" (2.54mm)
Pitch - Post0.100" (2.54mm)
Product StatusActive
Series110
TerminationSolder
Termination Post Length0.125" (3.18mm)
TypeDIP, 0.3" (7.62mm) Row Spacing

Documents

No documents are linked to this part yet.
