109R0648G4011

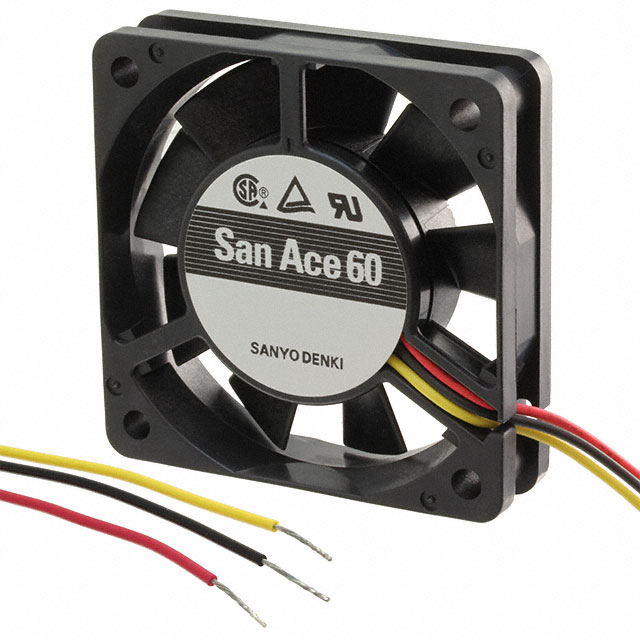

DC Brushless Fans (BLDC)FAN AXIAL 60X25MM 48VDC WIRE
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current Rating (Amps) | 0.070A |
| Power (Watts) | 3.36 W |
| Voltage Range | 43 ~ 53VDC |
| Voltage - Rated | 48VDC |
| AC and DC characteristics | |
| Noise | 39.0dB(A) |
| Environment and package | |
| Lifetime @ Temp. | 40000 Hrs @ 60°C |
| Operating Temperature | -4 ~ 140°F (-20 ~ 60°C) |
| Size / Dimension | Square - 60mm L x 60mm H |
| Other | |
| Air Flow | 27.5 CFM (0.770m³/min) |
| Approval Agency | CSA, TUV, UL |
| Base Product Number | 109R0648 |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | Locked Rotor Protection, Speed Sensor (Tach) |
| Ingress Protection | - |
| Material - Blade | Plastic |
| Material - Frame | Plastic |
| Mfr | Sanyo Denki America Inc. |
| Packaging | Box |
| Part Status | Active |
| RPM | 5600 RPM |
| Series | San Ace 60 |
| Static Pressure | 0.351 in H2O (87.3 Pa) |
| Termination | 3 Wire Leads |
| Weight | 0.199 lb (90.26 g) |
| Width | 25.00mm |
