Phoenix ContactGermany

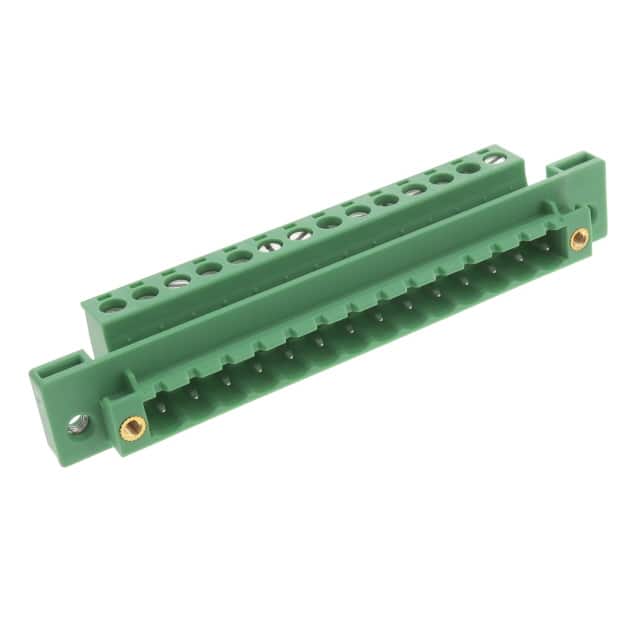

FEED-THROUGH CONNECTOR, NOMINAL
All alternatives
View full reportTechnical parameters
| Environment and package | |
|---|---|
| Package | Bulk |
| Panel Mount Type | Screw Mount - Front Flange |
| Other | |
| Color | Green |
| Features | Threaded Mating Lock |
| Front Panel Wire Connection | Header, Male Pins |
| Mfr | Phoenix Contact |
| Number of Levels | 1 |
| Panel Thickness | 0.079 ~ 0.197" (2.0 ~ 5.0mm) |
| Pitch | 0.200" (5.08mm) |
| Positions Per Level | 14 |
| Product Status | Active |
| Rear Panel Wire Connection | Bolt/Screw Clamp - Wire Entry Parallel to Panel |
| Series | CLIPLINE DFK |
| Width | 3.783" (96.09mm) |
| Wire Gauge | 12-24 AWG |
Documents
No documents are linked to this part yet.
