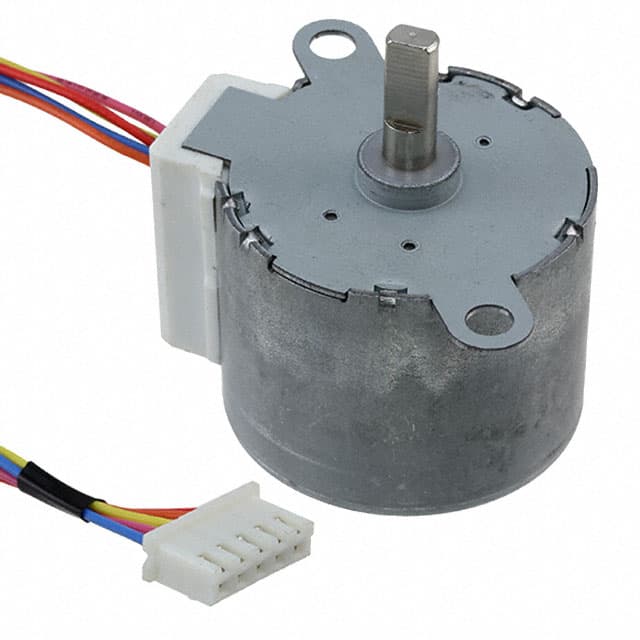

STEPPER MOTOR PM UNIPOLAR 12V
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Voltage - Rated | 12VDC |
| AC and DC characteristics | |
| Accuracy | - |
| Environment and package | |
| Mounting Hole Spacing | 1.650" (42.00mm) |
| Operating Temperature | - |
| Package | Bulk |
| Size / Dimension | Round - 1.378" Dia (35.00mm) |
| Other | |
| Approval Agency | - |
| Coil Resistance | 100 Ohms |
| Coil Type | Unipolar |
| Diameter - Shaft | 0.197" (5.00mm) |
| Features | Round Shaft |
| Length - Shaft and Bearing | 1.181" (30.00mm) |
| Mfr | Seeed Technology Co., Ltd |
| Product Status | Obsolete |
| Rotor Inertia | - |
| Series | - |
| Step Angle | 3.75° |
| Steps per Revolution | 42.5 |
| Termination Style | Wire Leads with Connector |
| Torque - Holding (oz-in / mNm) | 41.66 / 294.2 |
| Type | Permanent Magnet |
| Weight | 0.178 lb (80.74 g) |
