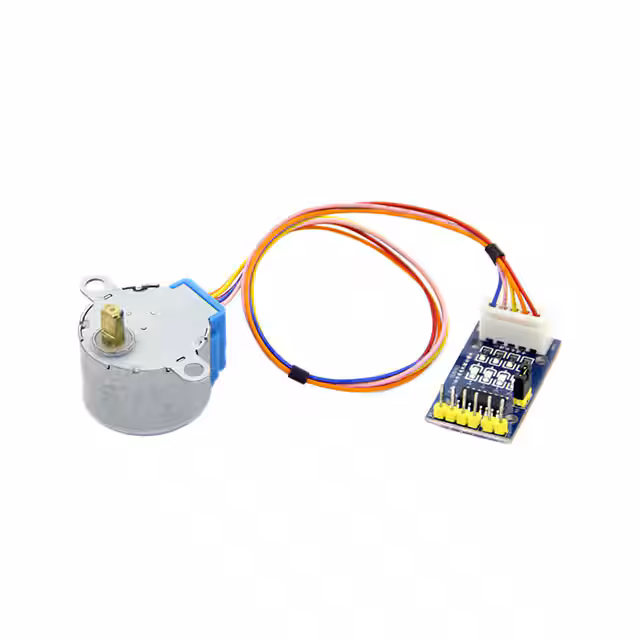

STEPPER MOTOR PM GEARED UNI 5V
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Voltage - Rated | 5VDC |
| AC and DC characteristics | |
| Accuracy | - |
| Environment and package | |
| Mounting Hole Spacing | - |
| Operating Temperature | -5°C~40°C |
| Package | Bulk |
| Size / Dimension | - |
| Other | |
| Approval Agency | - |
| Coil Resistance | 50 Ohms |
| Coil Type | Unipolar |
| Diameter - Shaft | - |
| Features | Driver |
| Length - Shaft and Bearing | - |
| Mfr | Seeed Technology Co., Ltd |
| Product Status | Obsolete |
| Rotor Inertia | - |
| Series | - |
| Step Angle | 0.088° |
| Steps per Revolution | 4096 |
| Termination Style | Wire Leads |
| Torque - Holding (oz-in / mNm) | 4.82 / 34 |
| Type | Permanent Magnet Gear Motor |
| Weight | 0.099 lb (44.91 g) |
