Phoenix ContactGermany

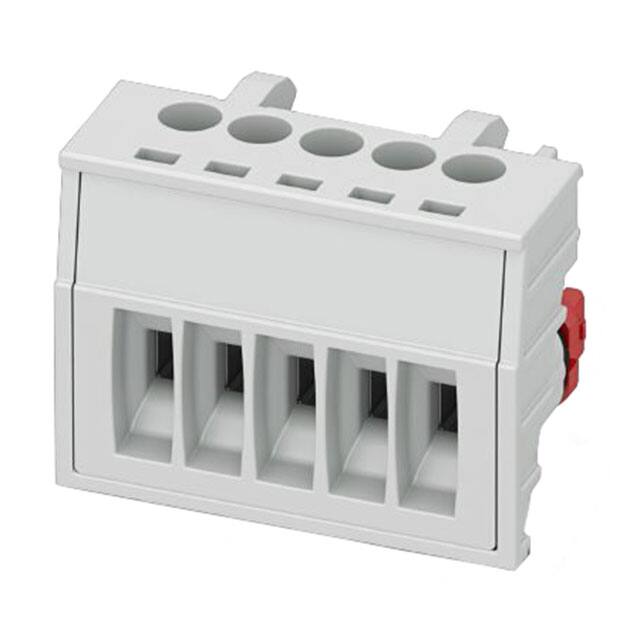

PCB CONNECTOR, NUMBER OF POSITIO
All alternatives
View full reportTechnical parameters
Key specs
Positions5
Pitch3.5 mm
| Power | |
|---|---|
| Current - IEC | 8A |
| Voltage - IEC | 250 V |
| Environment and package | |
| Insulation Height | - |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature | - |
| Package | Bulk |
| Screw Size | M2 |
| Other | |
| Color | Gray |
| Contact Material | - |
| Contact Mating Finish | - |
| Contact Tail Length | - |
| Features | Retention Latches (Non-Wire Side) |
| Header Orientation | - |
| Housing Material | Polyamide (PA), Nylon |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Mfr | Phoenix Contact |
| Number of Levels | 1 |
| Number of Positions | 5 |
| Pitch | 0.138" (3.50mm) |
| Plug Wire Entry | 180° |
| Positions Per Level | 5 |
| Product Status | Active |
| Series | COMBICON ICC |
| Termination Style | Screw - Clamping Yoke (Tension Sleeve) |
| Torque - Screw | 0.22-0.25 Nm (1.9-2.2 Lb-In) |
| Type | Plug, Female Sockets |
| Wire Gauge or Range - AWG | - |
| Wire Gauge or Range - mm² | - |
| Wire Strip Length | 8mm |
