Phoenix ContactGermany

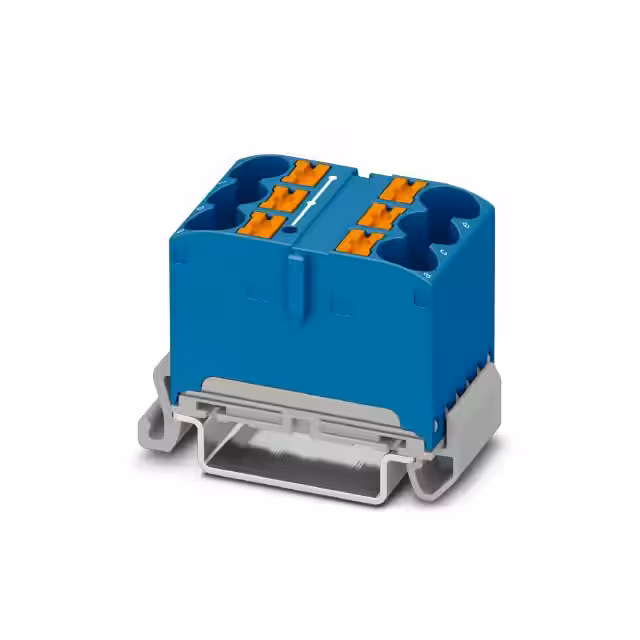

DISTRIBUTION BLOCK, BLOCK WITH H
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - UL | 60 A |
| Voltage - IEC | 800 V |
| Voltage - UL | 600 V |
| Environment and package | |
| Height (Max) | 1.346" (34.20mm) |
| Mounting Type | DIN Rail |
| Operating Temperature | - |
| Package | Bulk |
| Other | |
| Features | Block of 3 |
| Housing Color | Blue |
| Length | 1.799" (45.70mm) |
| Material Flammability Rating | UL94 V-0 |
| Material - Insulation | Polyamide (PA), Nylon |
| Mfr | Phoenix Contact |
| Number of Levels | 1 |
| Number of Positions | 6 |
| Product Status | Active |
| Series | CLIPLINE PTFIX |
| Stripping Length | 12mm ~ 14mm |
| Terminal - Width | 24.5mm |
| Termination Style | Push In, Spring |
| Type | Middle |
| Wire Gauge or Range - AWG | 6-20 AWG |
| Wire Gauge or Range - mm² | 0.5-16mm² |
