Century Spring CorpUnited States

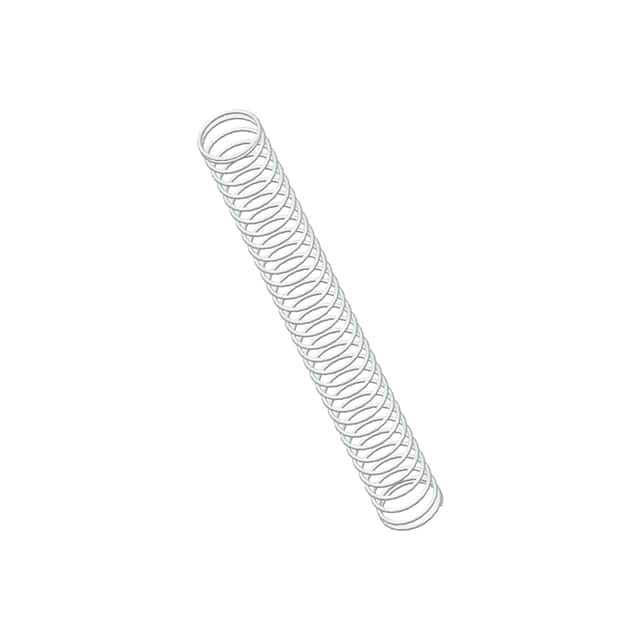

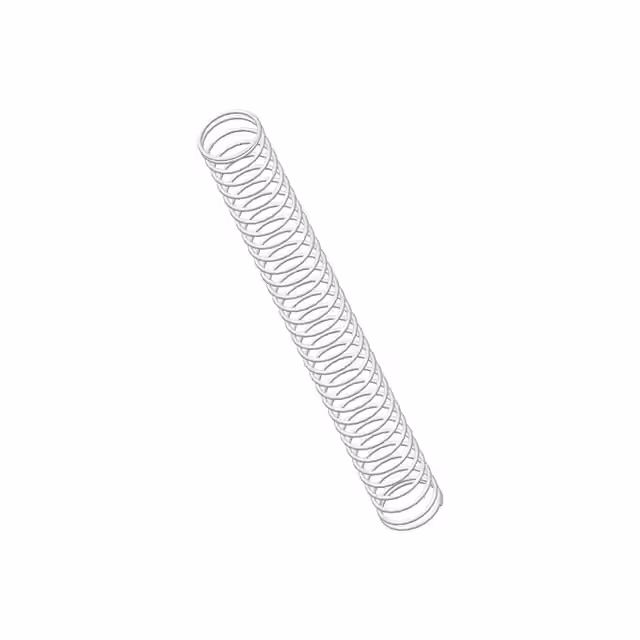

COMP O= .281,L= 2.50,W= .019
All alternatives
View full reportTechnical parameters
| Environment and package | |
|---|---|
| Package | Box |
| Other | |
| Diameter - Inside | 0.243" (6.17mm) |
| Diameter - Outside | 0.281" (7.14mm) |
| End Style | Closed & Ground |
| Finish | None |
| Free Length | 2.500" (63.50mm) |
| Material | Stainless Steel |
| Mfr | Century Spring Corp |
| Product Status | Active |
| Rate | 0.31 lbs/in |
| Series | - |
| Wire Diameter | 0.019" (0.48mm) |
Documents
No documents are linked to this part yet.
