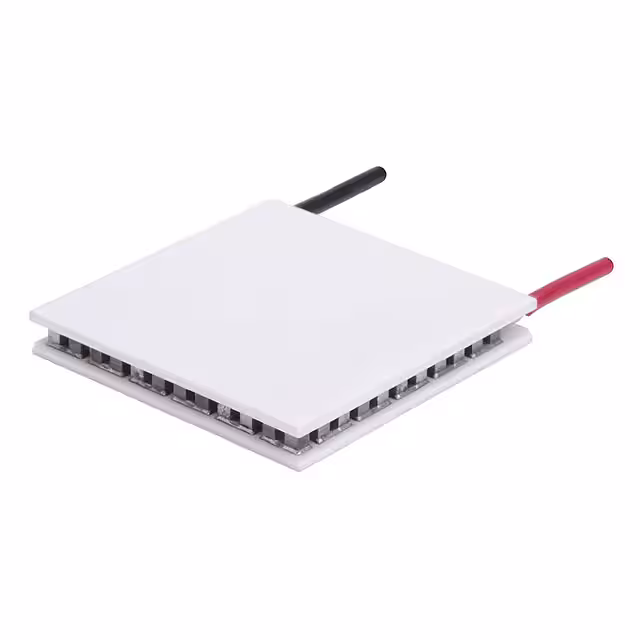

PELTIER MODULE 30X30X3.2MM 3.9A
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Max | 3.9 A |
| Voltage - Max | 14.4 V |
| Environment and package | |
| Height | 3.20mm |
| Operating Temperature | 120°C |
| Package | Bulk |
| Size / Dimension | Square - 30.00mm L x 30.00mm W |
| Other | |
| Delta Tmax @ Th | 67°C @ 25°C |
| Features | Lead Wires, Lapped |
| Mfr | Laird Thermal Systems, Inc. |
| Number of Stages | 1 |
| Product Status | Active |
| Qmax @ Th | 33.4W @ 25°C |
| Resistance | 3.36 Ohms |
| Series | Power-Cycling |
