Century Spring CorpUnited States

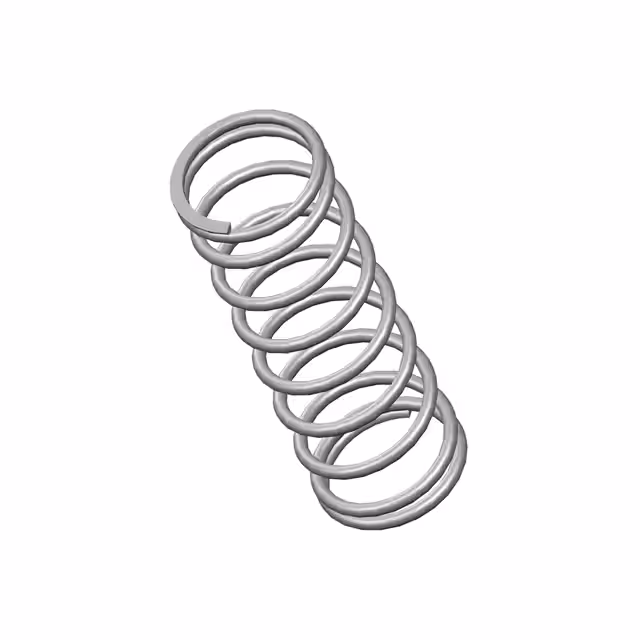

COMP O= .420,L= 1.25,W= .037
All alternatives
View full reportTechnical parameters
| Environment and package | |
|---|---|
| Package | Box |
| Other | |
| Diameter - Inside | 0.346" (8.79mm) |
| Diameter - Outside | 0.420" (10.67mm) |
| End Style | Closed & Ground |
| Finish | Zinc |
| Free Length | 1.250" (31.75mm) |
| Material | Spring Steel |
| Mfr | Century Spring Corp |
| Product Status | Active |
| Rate | 6.3 lbs/in |
| Series | - |
| Wire Diameter | 0.037" (0.94mm) |
