TE ConnectivitySwitzerland

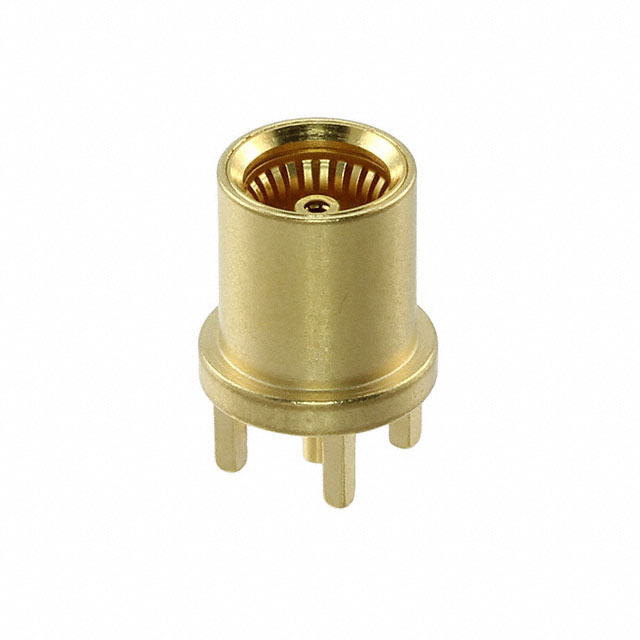

1059681-1
Coaxial Connector (RF) AssembliesCONN MINI OSP JACK STR 50OHM PCB
All alternatives
View full reportTechnical parameters
Key specs
GenderFemale
Impedance50 Ω
Max frequency18 GHzMax
| Power | |
|---|---|
| Voltage Rating | 335 V |
| AC and DC characteristics | |
| Frequency - Max | 18 GHz |
| Impedance | 50 Ohms |
| Environment and package | |
| Mounting Feature | - |
| Mounting Type | Through Hole |
| Operating Temperature | -65°C ~ 165°C |
| Package | Bulk |
| Other | |
| Base Product Number | 1059681 |
| Body Finish | Gold |
| Body Material | Stainless Steel |
| Cable Group | - |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | OSP, Mini |
| Connector Type | Jack, Female Socket |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Snap-On |
| Features | - |
| Housing Color | Gold |
| Includes | - |
| Ingress Protection | - |
| Insertion Loss | - |
| Mating Cycles | 5000 |
| Mfr | TE Connectivity Aerospace, Defense and Marine |
| Number of Ports | 1 |
| Product Status | Discontinued at Digi-Key |
| Series | Blindmate |
| Shield Termination | Solder |
