TE ConnectivitySwitzerland
CONN N PLUG STR 50 OHM SOLDER
All alternatives
View full reportTechnical parameters
Key specs
Connector styleType N
GenderMale
Impedance50 Ω
Max frequency11 GHzMax
| Power | |
|---|---|
| Voltage Rating | 1000 V |
| AC and DC characteristics | |
| Frequency - Max | 11 GHz |
| Impedance | 50Ohm |
| Environment and package | |
| Mounting Feature | - |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature | -65°C~165°C |
| Package | Bulk |
| Other | |
| Base Product Number | 1057243 |
| Body Finish | Nickel |
| Body Material | Brass |
| Cable Group | RG-55, 142, 223, 400 |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | N Type |
| Connector Type | Plug, Male Pin |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded |
| Features | - |
| Housing Color | Silver |

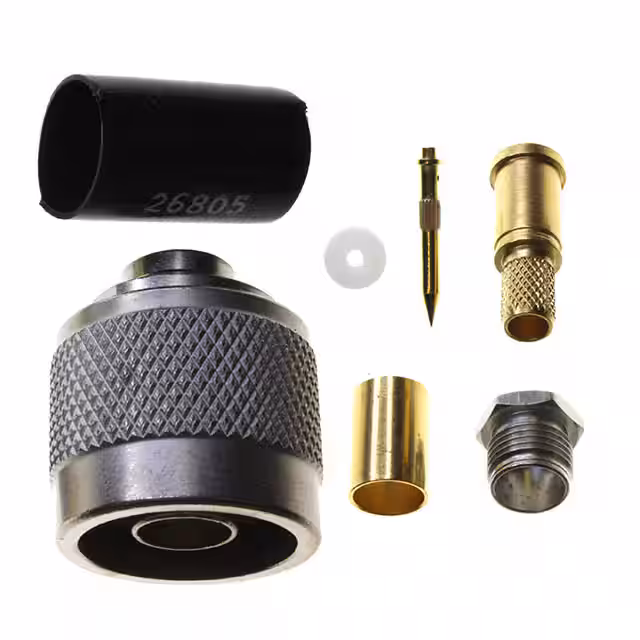

| Includes | 6 pcs - 1 Connector, 1 Clamp, 1 Contact, 1 Heat Shrink, 1 Insulator, 1 Sleeve |
| Ingress Protection | - |
| Insertion Loss | - |
| Mating Cycles | 500 |
| Mfr | TE Connectivity AMP Connectors |
| Number of Ports | 1 |
| Product Status | Obsolete |
| Series | - |
| Shield Termination | Crimp |
