MolexUnited States

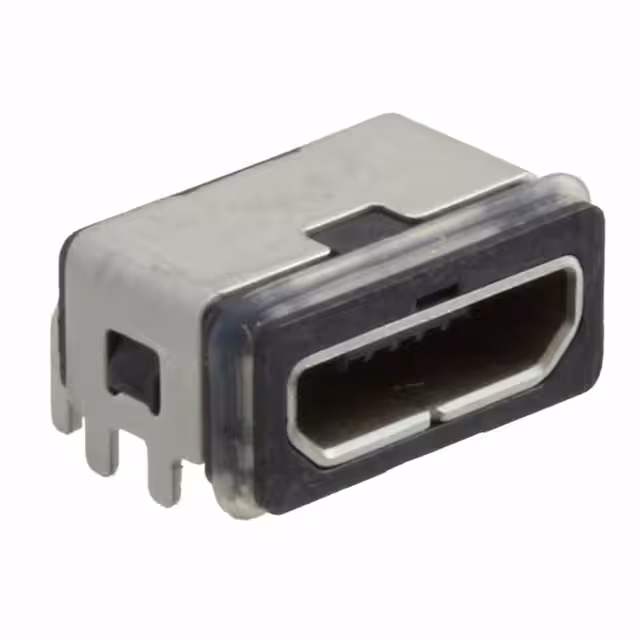

CONN RCPT USB2.0 MICRO B SMD R/A
All alternatives
View full reportTechnical parameters
Key specs
Positions5
GenderFemale
Current rating1.8 AMax
| Power | |
|---|---|
| Current Rating (Amps) | 1A, 1.8A |
| Voltage - Rated | 30VAC |
| Environment and package | |
| Mounting Feature | Horizontal |
| Mounting Type | Surface Mount, Right Angle; Through Hole |
| Operating Temperature | -35°C~85°C |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Other | |
| Base Product Number | 105443 |
| Connector Type | USB - micro B |
| Contact Finish | Gold |
| Features | Pick and Place |
| Gender | Receptacle |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insulation Color | - |
| Material Flammability Rating | - |
| Mating Cycles | 10000 |
| Mfr | Molex |
| Number of Contacts | 5 |
| Number of Ports | 1 |
| Product Status | Obsolete |
| Series | 105443 |
| Shell/Shielding Material | Steel, Stainless |
| Shielding | Shielded |
| Specifications | USB 2.0 |
| Termination | Solder |
