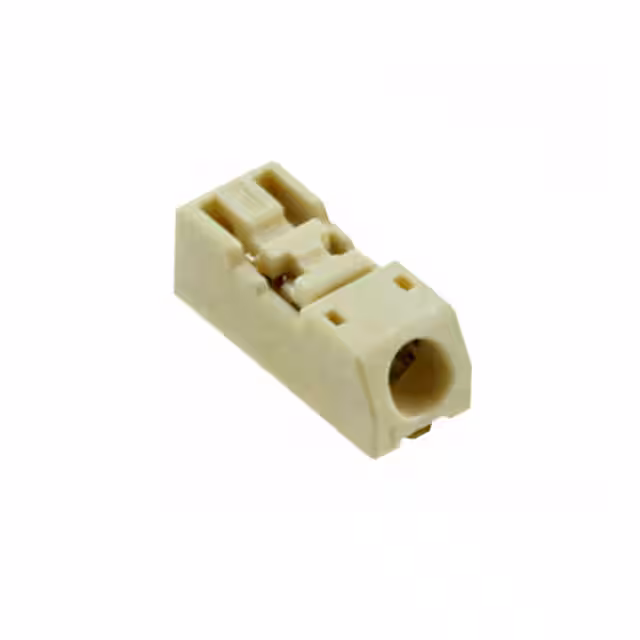

CONN MINI LITE-TRAP RCPT 1POS
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current Rating (Amps) | 3A |
| Voltage Rating | 160V |
| Environment and package | |
| Mounting Type | Surface Mount, Right Angle |
| Operating Temperature | -40°C~130°C |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Other | |
| Base Product Number | 104238 |
| Connector Type | Receptacle, Poke-In Wire |
| Contact Finish | Tin |
| Contact Material | Copper Alloy |
| Fastening Type | - |
| Features | - |
| Housing Color | Natural |
| Housing Material | Liquid Crystal Polymer (LCP), Glass Filled, Halogen Free |
| Ingress Protection | - |
| Mating Cycles | 25 |
| Mfr | Molex |
| Number of Positions | 1 |
| Pitch | - |
| Product Status | Obsolete |
| Series | Mini Lite-Trap |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Wire Gauge | 22-26 AWG |
