MolexUnited States

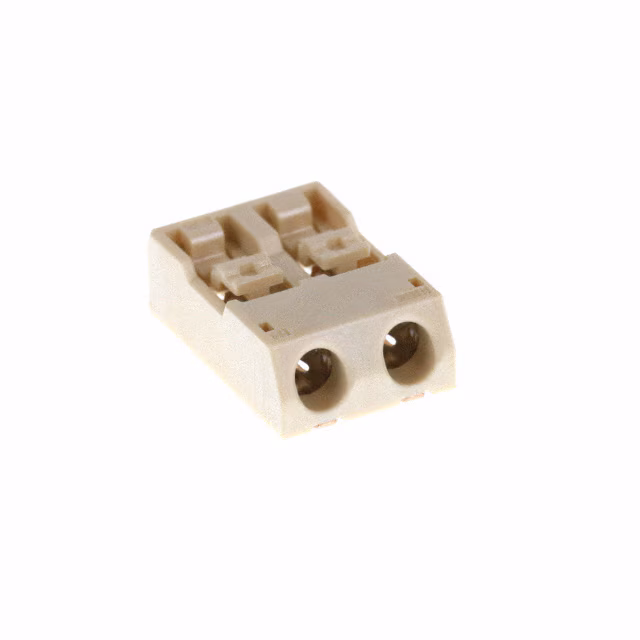

CONN SSL RCPT 2POS 4MM SOLDER
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current Rating (Amps) | 5A, 6A, 9A |
| Voltage Rating | 300V |
| Environment and package | |
| Mounting Type | Surface Mount, Right Angle |
| Operating Temperature | -40°C~130°C |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Other | |
| Base Product Number | 104188 |
| Connector Type | Receptacle, Poke-In Wire |
| Contact Finish | Tin |
| Contact Material | Copper Alloy |
| Fastening Type | - |
| Features | - |
| Housing Color | Natural |
| Housing Material | Liquid Crystal Polymer (LCP), Halogen Free |
| Ingress Protection | - |
| Mating Cycles | - |
| Mfr | Molex |
| Number of Positions | 2 |
| Pitch | 0.157" (4.00mm) |
| Product Status | Obsolete |
| Series | Lite-Trap |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Wire Gauge | 18-24 AWG |
